Matte Black
Bathroom Faucets
PVD matte black bathroom faucets — brass body, molecular-bond finish, certified for North America, Europe, and Australia.
We apply matte black in-house using physical vapor deposition, not paint or powder coat. The finish holds in humid bathroom environments where cheaper alternatives fail within months — which means fewer returns and no warranty claims eating into your margin.
Finish
PVD Matte Black
Certified
cUPC · CE · WaterMark
OEM MOQ
From 200 Pieces
Experience
17+ Years Mfg.
Finish Quality
Why Matte Black Fails — and What We Do Differently
Matte black is the finish category with the highest return rate in bathroom hardware, and the reason is almost always the same: the factory used paint or powder coat instead of PVD. Both look identical in a product photo. Both look identical in the first six months of use. Then the handle contact points start showing wear, the finish chips at the base of the spout, and your customer files a warranty claim.
We run matte black exclusively through our PVD (physical vapor deposition) line. PVD deposits the coating at the molecular level — the black layer bonds to the brass substrate rather than sitting on top of it. The result is a coating that doesn't chip, doesn't peel, and doesn't fade under normal bathroom humidity and cleaning cycles.
Our PVD Specification
0.3–0.5μm Coating Thickness
We run a cross-cut tape adhesion test on every batch before parts move to assembly. If a batch doesn't pass the adhesion test, it doesn't ship.
The commercial mechanism here is straightforward: a matte black faucet that holds its finish for five years generates zero warranty claims. A painted matte black faucet that starts showing wear at month eight generates a return, a replacement, a customer service interaction, and a review that damages your downstream brand.
The per-unit cost difference between PVD and paint at the factory level is real but modest. The warranty claim difference is not modest.
Process Note
We evaluated a lower-cost PVD process a few years back that ran at a thinner deposition rate — around 0.15μm. The adhesion test results were marginal on some batches. We stayed with the current 0.3–0.5μm spec. The cost difference per unit is small; the risk difference is not worth it.
PVD vs. Paint/Powder Coat
Technical Data
Product Specifications
The matte black bathroom faucet line runs on a C36000-equivalent free-machining brass body — gravity cast in-house, CNC machined to ±0.05mm on valve seat thread interfaces. The PVD matte black finish is applied after all machining and pre-treatment steps are complete.
| Parameter | Specification |
|---|---|
| Body material | C36000-equivalent free-machining brass |
| Finish process | PVD (physical vapor deposition) |
| Coating thickness | 0.3–0.5μm |
| Finish color | Matte black |
| Valve type | Ceramic disc cartridge |
| Cartridge endurance | 500,000 open/close cycles (tested per batch) |
| Valve seat tolerance | ±0.05mm (CNC machined) |
| Flow rate options | 1.2 GPM / 1.5 GPM / 2.2 GPM (aerator-configured) |
| Inlet connections | Standard 3/8" compression (other configurations available) |
| Pressure rating | Tested at 0.6 MPa for 60 seconds (100% outgoing inspection) |
| Salt spray rating | 24h minimum; extended 48h testing on new batches |
| Mounting configurations | Single-hole, 3-hole centerset, 8-inch widespread, wall mount |
| Handle configurations | Single lever, two-handle, cross handle |
| Certifications |
cUPC CE WaterMark ISO 9001:2015 SGS
|
Specifications shown are industry-standard values for this product type. Actual specifications may vary by configuration. Contact us for detailed product data sheets on specific SKUs.
Ceramic Disc Cartridge
500,000 open/close cycles tested per batch. Smooth operation across the full service life.
Pressure Tested
0.6 MPa for 60 seconds on 100% outgoing inspection. No sampling — every unit tested before shipment.
Flow Rate Options
1.2 / 1.5 / 2.2 GPM aerator-configured. Specify per market requirement at order stage.
Salt Spray Tested
24h minimum; extended 48h testing on new batches. Corrosion resistance validated before production release.
Available Configurations
Mounting
- Single-hole
- 3-hole centerset
- 8-inch widespread
- Wall mount
Handle
- Single lever
- Two-handle
- Cross handle

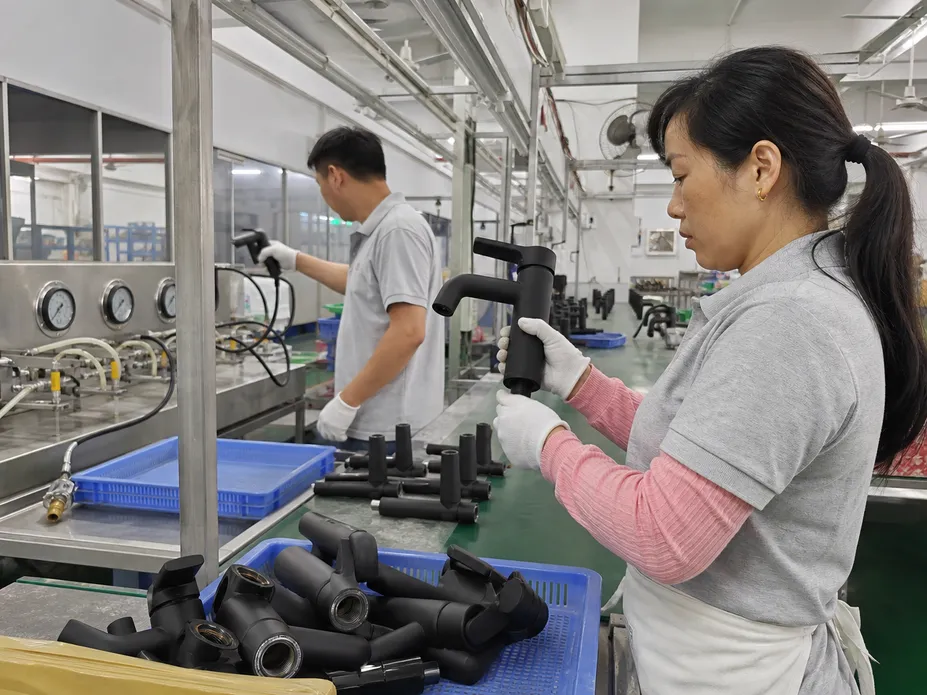

Factory & Process
Manufacturing & Quality Control
Every matte black bathroom faucet we supply is manufactured in our own facility — not sourced from a trading company or assembled from mixed-vendor components. That matters because quality control only works when you own the process from casting to final inspection.
The production sequence is fixed: gravity casting, CNC machining, surface pre-treatment, PVD coating, cartridge assembly, pressure testing, and outgoing inspection. No step is skipped on cost grounds. The pressure test and finish inspection happen on 100% of units, not on a sample.
Production Sequence
Gravity Casting
C36000-equivalent brass poured in-house. Casting geometry is designed to minimize porosity at valve seat and spout junction — the two highest-stress zones.

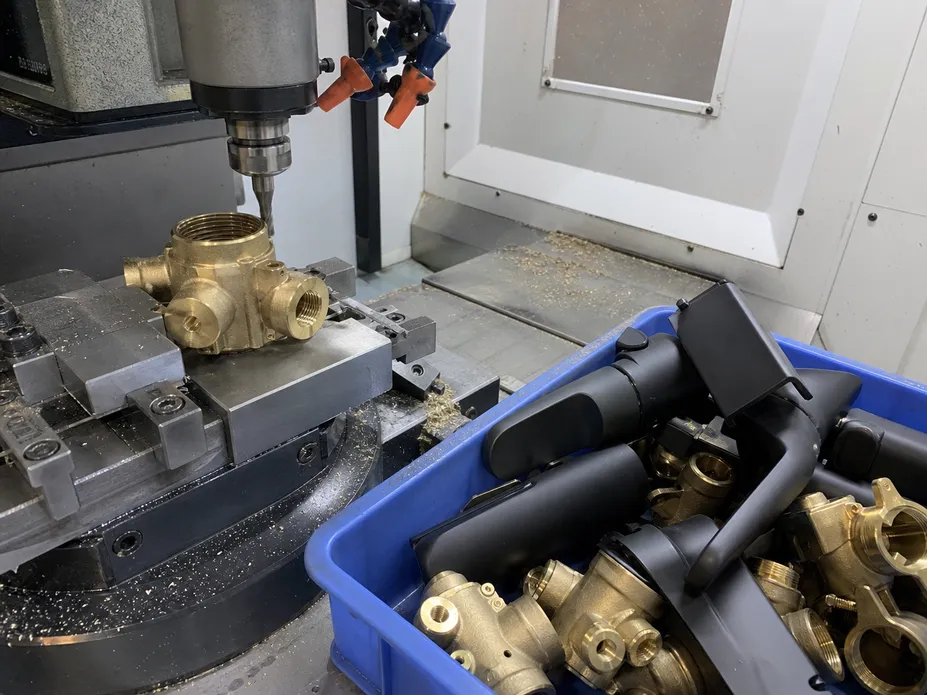

CNC Machining
Valve seat thread interfaces machined to ±0.05mm. Tight tolerances here directly determine cartridge seating quality and long-term drip resistance.
Surface Pre-Treatment
Multi-stage cleaning, degreasing, and activation before PVD. Adhesion failures in the field almost always trace back to inadequate pre-treatment — this step is not abbreviated.

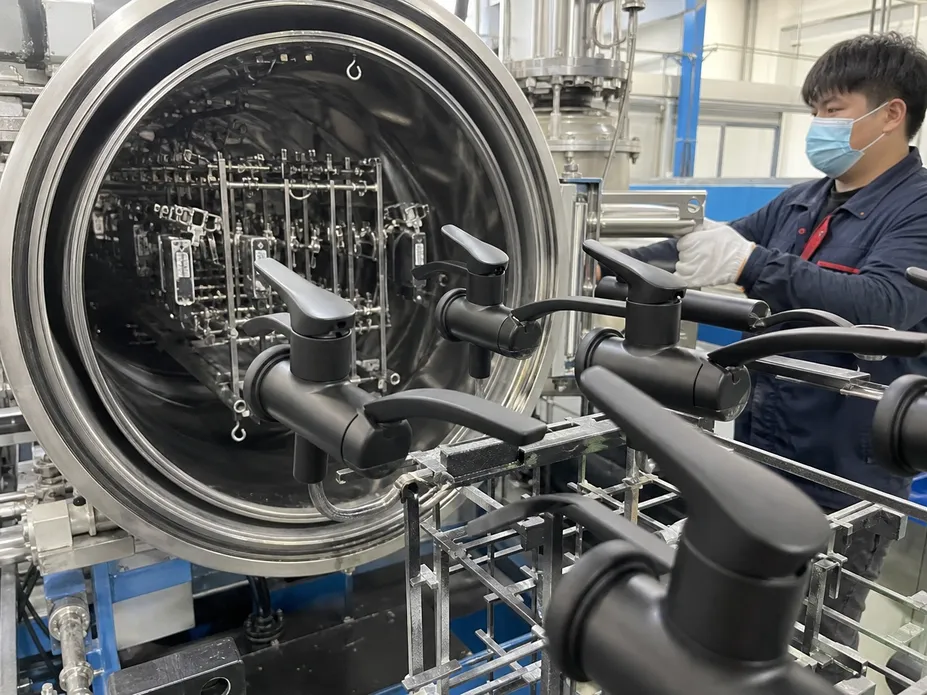

PVD Coating
Physical vapor deposition at 0.3–0.5μm. Applied in a controlled vacuum chamber. Coating thickness is verified by batch coupon testing before production units are released.
Cartridge Assembly
Ceramic disc cartridges installed and torqued to spec. Handle operation is checked manually at this stage — stiff or loose action is flagged before the unit reaches pressure testing.
Pressure Testing
0.6 MPa applied for 60 seconds on every unit. Any seepage at joints, valve seat, or spout connection fails the unit. No sampling — 100% outgoing inspection.
Finish & Outgoing Inspection
Visual inspection under controlled lighting for pinholes, thin spots, and color consistency. Units are packed only after passing both pressure and finish checks.
100%
Pressure Tested
Every unit, not sampled
500K
Cycle Endurance
Ceramic disc cartridge
±0.05mm
CNC Tolerance
Valve seat interface
48h
Salt Spray
Extended on new batches
Certifications & Standards
cUPC
Uniform Plumbing Code — required for US and Canadian market entry
CE
European conformity marking for EU market distribution
WaterMark
Australian/NZ plumbing product certification
ISO 9001:2015
Quality management system — factory-level certification
SGS
Third-party testing and inspection — finish durability and material composition
OEM & ODM Capability
We support private label, custom handle geometry, logo engraving, and market-specific flow rate configuration. Tooling lead times and MOQ vary by configuration — contact us for a project-specific quote.
Market Segments Where Matte Black Drives Margin
Matte black is a premium finish in every market we ship to, and the buyers who stock it consistently report stronger margin than their chrome equivalents. The finish commands a higher retail price point, and because PVD matte black has a longer service life than chrome in humid environments, the after-sales cost is lower. Here's how the segment picture looks from our side.

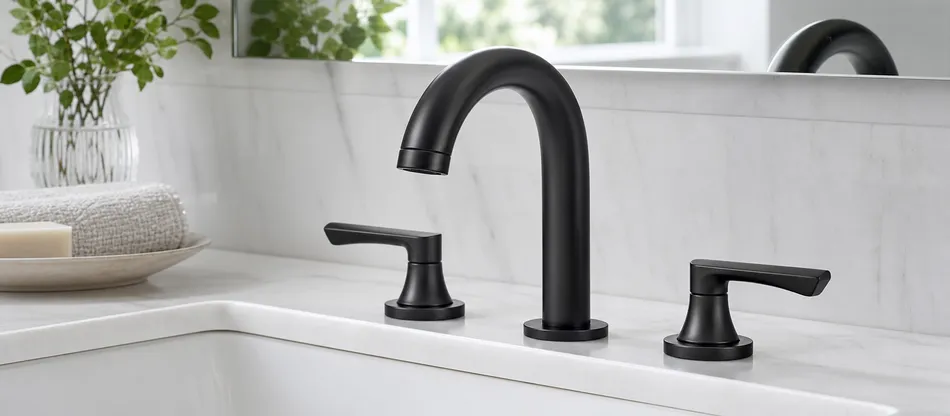

North America
Mid-to-Premium Residential Distribution
Matte black is the fastest-growing finish in the $150–$400 retail price tier for bathroom faucets in the US and Canada. Distributors who added matte black SKUs to their catalog three to four years ago are now running it as a core line, not a specialty item.
Typical Order
500–1,500 units / SKU / year
Reorder Cycle
Every 4–6 months
The widespread configuration in matte black is the highest-margin SKU in this segment — it retails at a significant premium over centerset and the per-unit cost difference at the factory level is proportionally smaller.

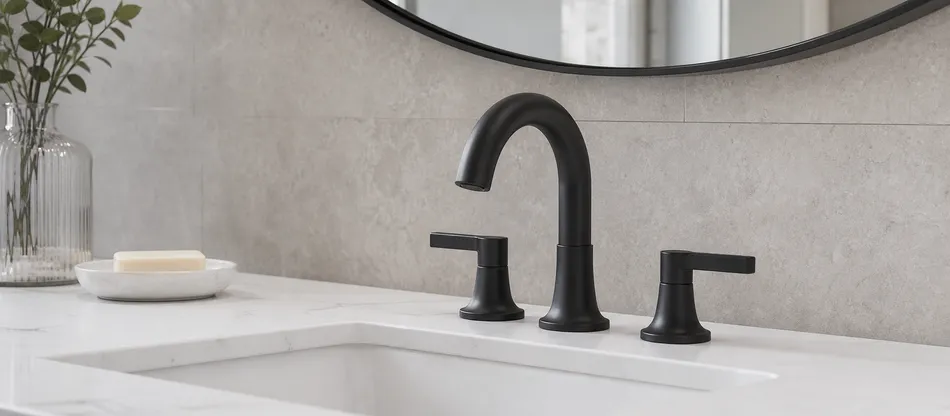

Europe
Premium Residential & Renovation
Matte black has moved from a design trend to a standard finish option in the German, French, and UK premium residential markets. European buyers tend to specify two-handle configurations more often than North American buyers, and wall-mount matte black is a growing segment in renovation projects where the wall-mount look is part of the design brief.
Trend note: European order sizes for matte black have grown steadily over the past three years — it's worth building into your catalog if you're serving the premium renovation channel.

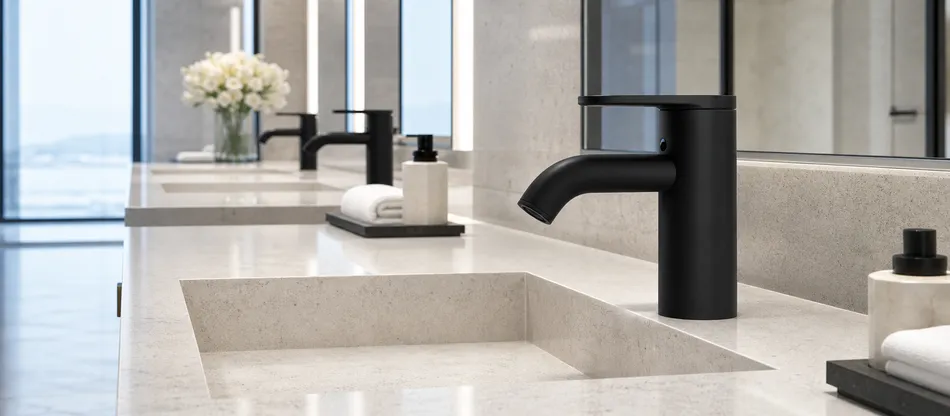

Middle East
Hospitality Fit-Outs
UAE and Saudi Arabia hospitality projects increasingly specify matte black alongside PVD gold as the two premium finish options for bathroom fixtures. The finish consistency requirement is strict — every faucet in a property needs to match.
Hotel Fit-Out Order
200–800 units / property
Consistency Control
Same PVD line, same parameters
Because we run all matte black through the same PVD line with the same process parameters, batch-to-batch color consistency is controlled. Your hotel client won't be calling about mismatched fixtures in rooms 201 and 347.

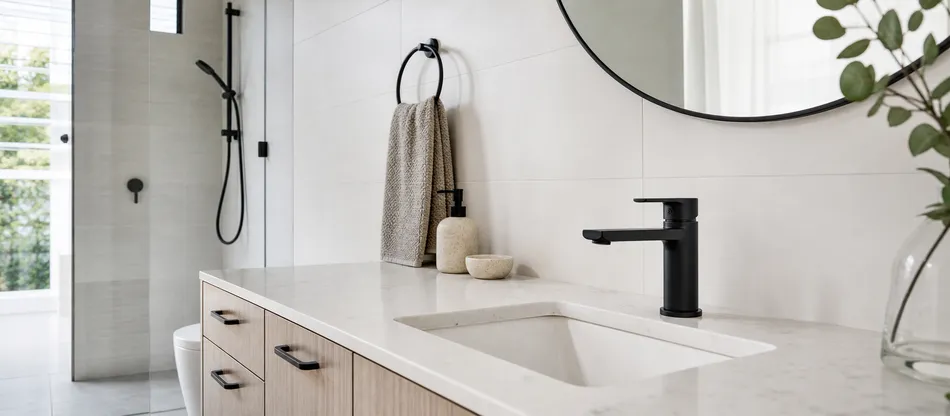

Australia
Premium Residential
WaterMark certification is mandatory for any faucet installed in Australia — non-certified product cannot be legally installed. Our matte black line carries WaterMark, so your Australian buyers can list and install without compliance risk.
Matte black is growing in the Australian premium residential segment, particularly in new construction where the builder is specifying a coordinated black hardware package across bathroom fixtures.
Tell us your destination market and we'll confirm the applicable certifications and flow rate specs.
PVD Matte Black vs. Painted Matte Black: The Sourcing Decision
This is the question we get most often from buyers who are comparing our matte black faucets against lower-priced alternatives. The short answer: if your buyers are in a market where matte black is positioned as a premium finish, PVD is the only version worth selling.
Painted Matte Black
Spray-applied coating
Adhesion Method
Mechanical adhesion — liquid paint or powder coat sits on the surface of the brass body. There is no molecular bond to the substrate.
Wear Behavior
Under repeated handling (the handle gets touched hundreds of times a day), the coating at contact points wears through. Under bathroom humidity and cleaning products, the coating can blister or peel at edges and seams.
Hardness
80–120 HV on the Vickers scale for most paints.
Typical Failure Timeline
6–18 months in active use
PVD Matte Black
Physical vapor deposition
Adhesion Method
Deposited in a vacuum chamber using ionized metal particles that bond directly to the substrate. There is no interface layer to delaminate.
Wear Behavior
Chemically inert to the cleaning products your end users will apply. Resists blistering, peeling, and contact-point wear under normal residential use conditions.
Hardness
2,000–3,000 HV on the Vickers scale — harder than paint by a factor of 20–35×.
Expected Service Life
Life of the product under normal residential use
The Real Cost Comparison
The cost difference at the factory level is real: PVD processing costs more than spray painting. But the cost difference at the distribution level — when you factor in warranty claims, replacement units, and customer service — runs the other way.
One warranty claim on a painted faucet costs more than the PVD premium on ten units.
Painted — Warranty Risk
1 claim
erases margin on multiple units
PVD — Total Cost
10× lower
warranty cost vs. painted alternative

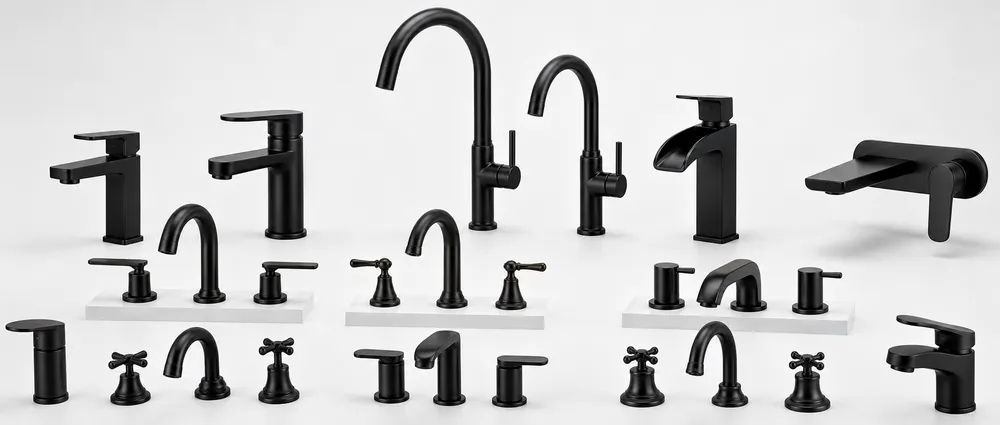

Configurations Available in Matte Black
The matte black finish is available across the full bathroom faucet line. Every configuration listed below runs through the same PVD process with the same 0.3–0.5μm coating spec.
By Mounting Type
- Single-hole deck mount (centerset, 4-inch spread)
- Three-hole centerset (4-inch spread, separate handles)
- 8-inch widespread (three-piece: spout + two handles)
- Wall mount (supply lines run inside wall cavity)
By Handle Style
- Single lever (one handle controls temperature and flow)
- Two-handle (separate hot and cold, lever or cross handle)
- Cross handle (traditional style, available on two-handle configurations)
By Spout Profile
- Standard arc spout
- High-arc spout (for vessel sink applications — confirm spout height against your sink depth before ordering)
- Waterfall spout (sheet-flow delivery, higher retail price point)
Flow Rate Configurations
- 1.2 GPM — WaterSense compliant (EPA, USA); required for California and other WaterSense states
- 1.5 GPM — standard North American residential
- 2.2 GPM — standard for markets without flow rate restrictions
Specify your target market at order time and we'll configure the aerator accordingly. For mixed-market orders, we can pack different aerator configurations in the same container.

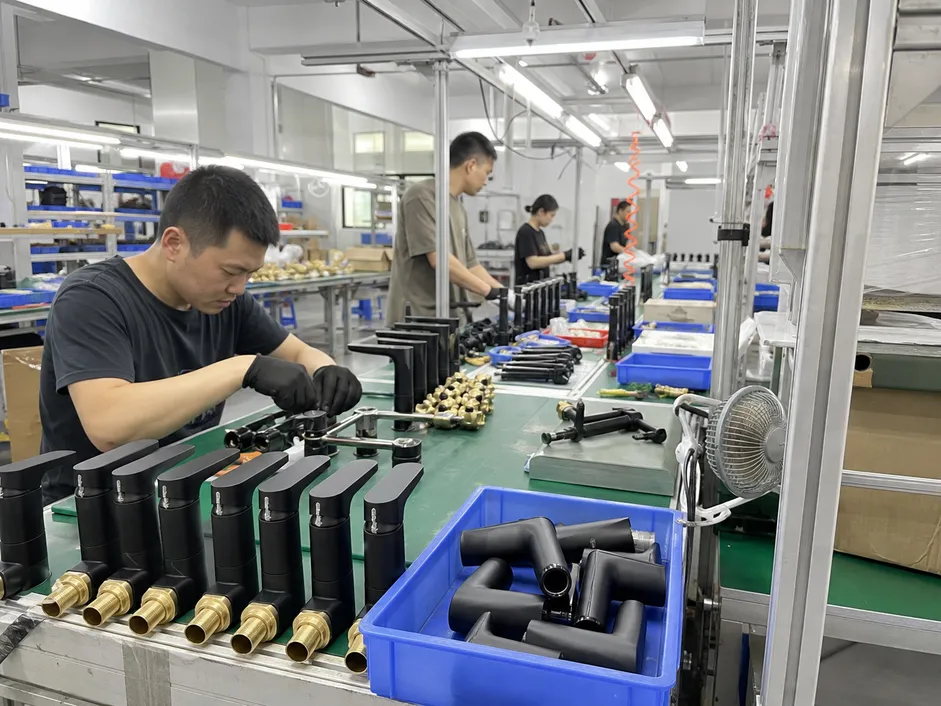

OEM and Private Label: Matte Black from 200 Pieces
The matte black line is fully available for OEM from 200 pieces per SKU. That's low enough to test a new finish in your market before committing to a full container.
How Buyers Typically Start
Most buyers who are adding matte black to their catalog for the first time start with a 200–500 unit trial order on one or two configurations, confirm sell-through, then move to container quantities on reorder.
OEM (New Body Design)
25–35 days
First sample, depending on tooling complexity
ODM (Catalog Body Adaptation)
15–20 days
From reference sample or 2D drawing to first sample
We maintain an in-house tooling room for brass casting dies and CNC fixtures, so tooling revisions don't go to an outside vendor.
Customization Options — Matte Black Line
Finish Variants
Standard matte black is our base. Gunmetal (darker, warmer tone) and matte black with brushed gold accents are available on runs of 500+ pieces — these are growing in the European and Middle East premium segments.
Handle Style and Material
Lever, cross, or knob handles in zinc alloy or solid brass. Handle profile can be customized for ODM projects.
Spout Height and Reach
Adjustable within the body's structural constraints. Relevant for vessel sink applications.
Packaging
Custom carton printing, branded installation instructions, retail-ready packaging with your logo and barcode. We handle packaging design coordination.
Certification Documentation
cUPC, CE, WaterMark test reports issued in your brand name for OEM orders meeting minimum volume thresholds.
PVD Color Changeover: Plan for 300-Piece Minimums
The PVD line changeover between matte black and other colors (gunmetal, brushed gold) requires a chamber cleaning cycle. Below 300 units, the changeover cost doesn't make sense for either of us. For custom PVD color variants, plan for 300-piece minimums per color.
200
Pieces — OEM Minimum per SKU
300+
Pieces — Custom PVD Color Minimum
500+
Pieces — Gunmetal & Brushed Gold Accents
Ready to spec your matte black OEM order?
Send us your target retail price point and destination market — we'll spec the version that protects your margin.
Certification Coverage for Your Export Markets
The matte black bathroom faucet line carries the same certification stack as the full bathroom faucet range: cUPC for North America, CE for Europe, WaterMark for Australia and New Zealand, ISO 9001:2015, and SGS third-party audit.
| Certification | Market | What It Covers |
|---|---|---|
| cUPC | USA, Canada | NSF/ANSI 61 & 372 lead-free compliance, plumbing code |
| CE | European Union | Pressure performance, material safety |
| WaterMark | Australia, New Zealand | AS/NZS plumbing standards compliance |
| ISO 9001:2015 | All markets | Quality management system |
| SGS | All markets | Third-party audit and testing verification |
Lead-Free Brass — Every Batch, Every Market
cUPC compliance required us to qualify a low-lead brass alloy and validate our casting parameters against NSF/ANSI 61 and 372. We test every incoming brass batch for lead content using XRF analysis — this applies to all production regardless of destination market. Your North American buyers get lead-free product; so does everyone else.
OEM Certification in Your Brand Name
For OEM orders, certification test reports can be issued in your brand name once minimum volume thresholds are met. If you're adding a new handle configuration or spout profile to an existing certified body, we manage the certification extension documentation — you don't run a full re-certification from scratch.
Questions about certification scope for a specific destination market or OEM brand transfer?
Learn more about our manufacturing capabilities and QC processNorth America
cUPC Certified
NSF/ANSI 61 & 372
Europe
CE Marked
Pressure & material safety
ANZ
WaterMark Approved
AS/NZS plumbing standards
Container Loading and Landed Cost Planning
Matte black bathroom faucets ship in the same carton configuration as the rest of the bathroom faucet line. Standard packing runs 6–12 units per master carton depending on configuration, with individual units in foam-lined inner boxes.
Container Capacity by Configuration
40HQ Container — Estimated Load
Standard Centerset
Compact carton footprint
2,000–3,500
units
Widespread Configuration
Larger carton footprint
Lower density
vs. centerset
Wall-Mount Configuration
Larger carton footprint
Lower density
vs. centerset
Standard Packing Configuration
- 6–12 units per master carton depending on configuration
- Individual units in foam-lined inner boxes
- Commercial invoice, packing list, certificate of origin, and applicable test reports prepared in parallel with production

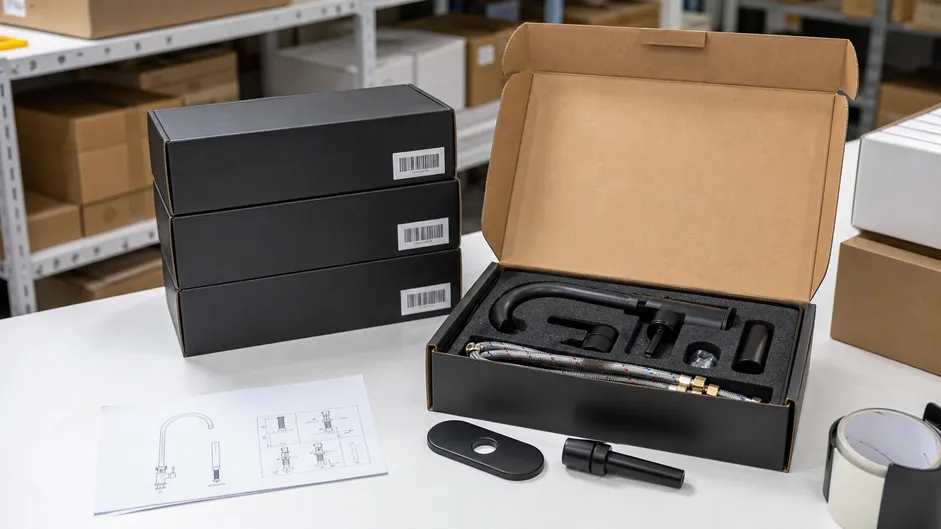

E-Commerce and FBA Fulfillment
For e-commerce and Amazon FBA buyers: we can configure packaging for direct-to-consumer fulfillment — retail-ready inner boxes with your branding, barcodes, and installation instructions included. The matte black finish photographs well for product listings, and the PVD durability means your FBA return rate on finish complaints stays low.
We can also support blind drop-shipping and white-label configurations for buyers running direct-to-consumer channels alongside their wholesale business.
Export Documentation
Commercial invoice, packing list, certificate of origin, and relevant test reports (cUPC, CE, WaterMark as applicable) prepared in parallel with production — no delays at the documentation stage.
Lead Times
From order confirmation to container loading.
DTC and White-Label Support
Blind drop-shipping and white-label configurations available for buyers running direct-to-consumer channels alongside wholesale. Retail-ready inner boxes with your branding, barcodes, and installation instructions.
Ready to plan your container order?
Share your target configuration mix and destination port — we'll provide a container utilization estimate and landed cost breakdown to support your buying decision.
Frequently Asked Questions
Decision-support answers for distributors, importers, and OEM buyers evaluating matte black bathroom faucets.
What is the difference between PVD matte black and painted matte black faucets?
PVD (physical vapor deposition) bonds the coating at the molecular level — it doesn't chip, peel, or fade under normal bathroom conditions. Painted matte black looks identical in a product photo but shows wear at handle contact points within 6–18 months of use.
Our PVD coating runs 0.3–0.5μm thickness and passes cross-cut adhesion testing on every batch. If your buyers are in a market where matte black is a premium finish, PVD is the only version worth selling — the warranty claim difference is significant.
Does matte black PVD hold up to bathroom cleaning products?
PVD coatings are chemically inert to the cleaning products typically used in residential bathrooms — mild acids, alkaline cleaners, and disinfectants. The coating hardness (typically 2,000–3,000 HV Vickers) means it resists abrasion from cleaning cloths.
The one thing to avoid is abrasive scrubbing pads, which can scratch any finish including PVD. For commercial applications where harsh cleaning protocols are used, ask us about the specific cleaning product compatibility — we can provide test data.
What certifications does the matte black bathroom faucet carry?
The matte black line carries full certification coverage for major export markets:
All certifications are held on the factory and apply to the matte black line. Test reports are included with shipment documentation. For OEM orders, reports can be issued in your brand name at qualifying volumes.
What is the MOQ for matte black bathroom faucets?
200 pieces per SKU for OEM orders. For standard catalog items under the Wfaucet brand, MOQ is lower — contact us with your target SKU list.
Custom PVD color variants (gunmetal, matte black with brushed gold accents) require 300-piece minimums per color due to PVD chamber changeover requirements.
Can matte black faucets be mixed with other finishes in the same container?
Yes. For mixed-finish orders, we schedule production so all matte black SKUs run through the PVD line in the same batch where possible, minimizing batch-to-batch variation. We coordinate the container packing sequence to minimize void space.
Provide your full SKU list and volumes when requesting a quote and we'll confirm the loading plan.
How does matte black perform in high-humidity coastal environments?
PVD matte black is more corrosion-resistant than electroplated finishes in humid environments because there's no plating stack to delaminate. The brass substrate is protected by the PVD layer, and the coating itself doesn't oxidize.
For coastal markets — Florida, Queensland, UAE coastal — matte black PVD is a better long-term choice than chrome or brushed nickel for buyers who want to minimize warranty claims from their coastal accounts.
Other Bathroom Faucet Finishes
Matte black is one of five finishes we run in-house. If your catalog needs coverage across multiple finish tiers, all five ship from the same factory with the same documentation stack.
Chrome
Chrome Bathroom Faucet
Multi-layer electroplated chrome, 24h+ salt spray rated. Entry-to-mid price point, highest volume finish globally.
View Chrome Line
Brushed Nickel
Brushed Nickel Bathroom Faucet
Brushed texture over copper/nickel/chrome stack, lacquer-sealed. Hides water spots, strong performer in North American mid-to-premium retail.
View Brushed Nickel Line
Brass
Brass Bathroom Faucet
Unlacquered or PVD-sealed brass body. High-end residential and boutique hospitality, strong margin profile.
View Brass Line
Stainless Steel
Stainless Steel Bathroom Faucet
304 stainless body for commercial and healthcare environments where corrosion resistance is the primary spec.
View Stainless Steel LineFor a distribution catalog covering the full finish range, all five finishes ship from the same factory with the same documentation stack.
View Full Bathroom Faucet LineGet a Quote for Matte Black Bathroom Faucets
Send us your target configurations and we'll come back with a detailed quote, confirm which certifications apply, and flag any configuration details worth discussing before you commit.
What to Include in Your RFQ
- Mounting type — deck mount, wall mount, vessel, widespread
- Handle style — single lever, cross, knurled, or custom
- Flow rate — target GPM or LPM for your destination market
- Destination market — US, EU, AU, CA, or other export region
- Volume — trial order quantity or annual forecast
Adding Matte Black for the First Time?
Tell us your current catalog and target market. We'll suggest a starter SKU mix based on what's moving for our existing distributors in that region.
Most new buyers in this finish category start with a 200–500 unit trial order to test sell-through before moving to container quantities.
Contact Us Directly
julie@wfaucet.com
+86 18145781319
Phone
+86-0757-81228796
Online Form
Submit a Quote Request
We typically respond within 1 business day. For urgent inquiries, WhatsApp is fastest.
