Two Handle Kitchen Faucets

Q: What is the difference between a two handle kitchen faucet and a single handle kitchen faucet, and which is better for my market?

Neither is universally better; they serve different market segments. Single-handle is the dominant configuration in North American residential retail and modern kitchen renovation. Two-handle holds a strong position in European markets, traditional and transitional kitchen styles, and hospitality or rental segments where separate temperature control and repairability are valued. North American catalogs often lead with single-handle and carry two-handle for traditional segments, while European and hospitality channels may treat two-handle as a core SKU.

Q: What is the difference between a deck-mount and a widespread two handle kitchen faucet?

Deck-mount faucets place the spout and both handles through three holes on standard 4-inch centers, which covers the broadest installation base for distribution catalogs. Widespread faucets use separate spout and handle bodies, with handles typically spread 8 inches apart. Widespread configurations are specified for premium residential or hospitality segments where the visual spread is part of the design intent.

Q: What certifications does a two handle kitchen faucet need for the US market?

The primary certification for the US market is cUPC (IAPMO), which verifies compliance with ASME A112.18.1 / CSA B125.1. For California and other states with AB 1953 requirements, the faucet must use low-lead brass with no more than 0.25% weighted average lead content per NSF 61/372. Wfaucet's cUPC-certified two-handle faucets meet both requirements and include test reports and certification documentation with every shipment. NSF 61 may also be required for some commercial installations depending on jurisdiction.

Q: Can the handle spread on a widespread two handle kitchen faucet be customized?

Yes. The standard widespread configuration is 8 inches center-to-center, and OEM orders can accommodate 6-16 inch handle spreads by adjusting supply tube lengths and handle mounting positions. This usually does not require new body tooling. The MOQ for custom handle spread configurations is 200 pieces; buyers should send sink specifications so feasibility can be confirmed.

Q: How do you prevent finish inconsistency between reorders of the same two handle kitchen faucet SKU?

Finish consistency is managed through documented plating bath chemistry, bath testing and adjustment before production runs, PVD coating thickness measurement for brushed nickel, matte black and PVD gold with a target range of 0.3-0.5 micrometer, and reference panel comparison for chrome and oil-rubbed bronze under standardized lighting. These parameters are recorded in the batch production record that travels with the shipment documentation.

Q: What is the MOQ for OEM two handle kitchen faucets with a custom handle design?

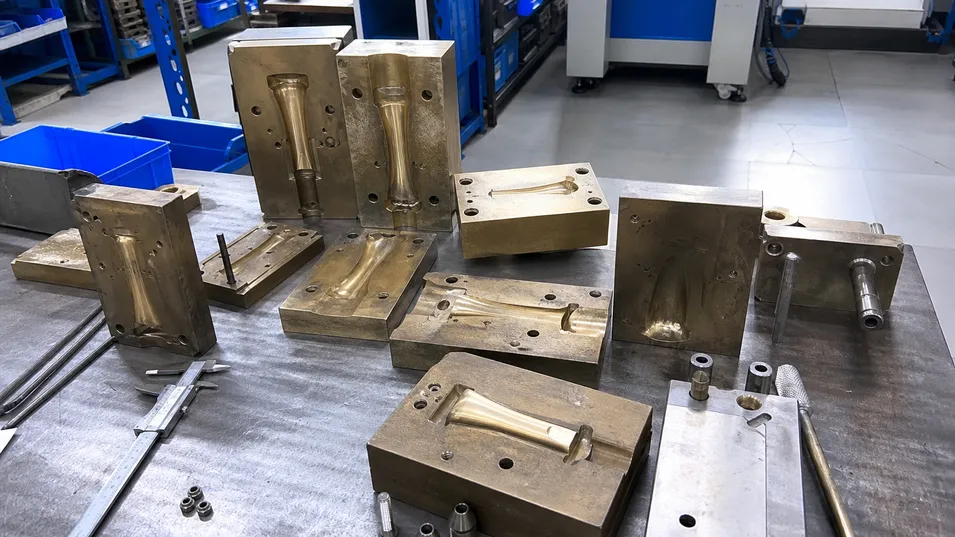

MOQ starts at 200 pieces per SKU for handle modifications using existing body tooling. If an entirely new handle casting die is required, the tooling investment is discussed separately and is typically amortized over the first 1-2 production runs. New handle tooling takes 3-4 weeks from approved drawing to first casting sample.

Sourcing Intelligence

What Makes the Two-Handle Configuration a Distinct Sourcing Decision

The two handle kitchen faucet is not a legacy product waiting to be replaced by single-lever designs. It's a configuration with a specific and durable market position — one that your buyers in traditional kitchen segments, European markets, and hospitality projects actively specify by name. Understanding where it fits commercially is the first step to knowing whether it belongs in your catalog.

The core mechanical difference is that hot and cold water are controlled by separate valve stems, each with its own ceramic disc cartridge. That means two independent sealing surfaces instead of one. In practice, this changes the failure profile: a drip on a two-handle faucet is almost always traceable to one cartridge, which is a straightforward field repair. On a single-handle faucet, a cartridge failure takes out both temperature and flow control simultaneously. For buyers supplying rental property managers, hospitality operators, or any segment where maintenance cost matters, the two-handle design's repairability is a real commercial argument — not a feature to gloss over.

We run two handle kitchen faucets in both deck-mount (3-hole, 4-inch center) and widespread (8-inch center, separate body and handles) configurations. The deck-mount version covers the broadest installation base — it fits any standard 3-hole sink without modification. The widespread configuration is specified for premium kitchen installations where the handle spread creates a more architectural look and where the sink deck has pre-drilled 8-inch centers.

Both configurations run on the same C36000-equivalent brass body platform we use across the kitchen line, with the same CNC-machined valve seat tolerances and the same ceramic disc cartridge system.

Get a Quote for Two Handle Kitchen Faucets

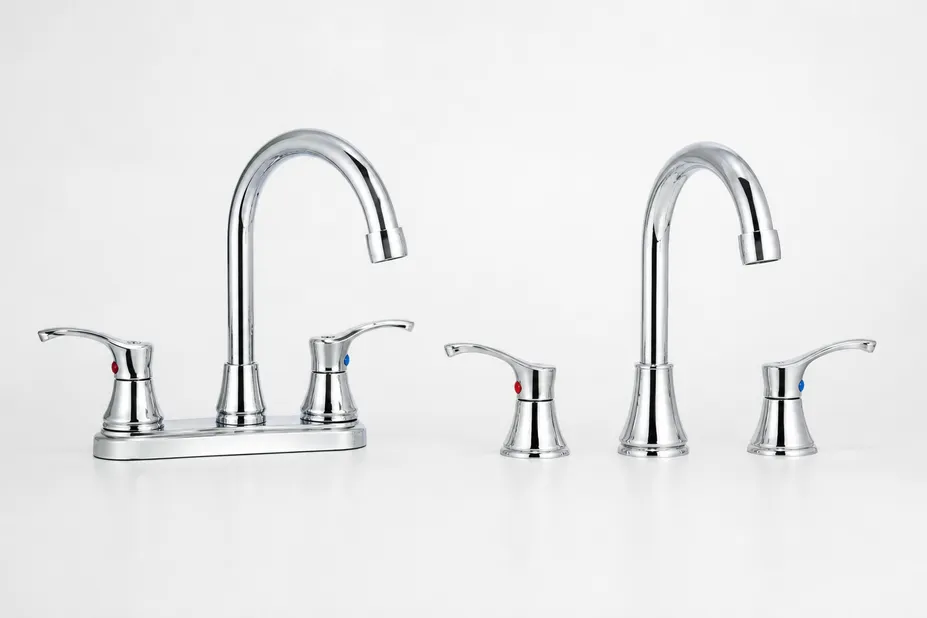

Deck-mount and widespread two handle kitchen faucet configurations side by side

Isolated Failure Profile

A drip traces to one cartridge. Field repair is straightforward — no full valve replacement required.

Specified by Name

Traditional, transitional, and European kitchen buyers actively specify two-handle configurations — not a fallback choice.

Two Configurations

Deck-mount (4-inch center) for broadest install base. Widespread (8-inch center) for premium architectural kitchens.

Shared Brass Platform

C36000-equivalent brass body, CNC-machined valve seat tolerances, and ceramic disc cartridges across both configurations.

Engineering Data

Technical Specifications

Standard parameters for our two handle kitchen faucet line. Contact us for exact specifications on specific configurations or OEM variants.

Parameter	Deck-Mount (3-Hole)	Widespread (8-Inch)
Body Material	C36000-equivalent brass	C36000-equivalent brass
Valve / Cartridge	Ceramic disc, per handle	Ceramic disc, per handle
Cartridge Endurance	500,000 cycles tested per batch	500,000 cycles tested per batch
Handle Centers	4-inch (standard)	8-inch (standard); 6–16 inch adjustable on request
Spout Height	Typically 180–220mm	Typically 200–250mm
Spout Reach	Typically 180–220mm	Typically 180–220mm
Spout Swivel	360°	360°
Flow Rate	1.5–2.2 GPM (adjustable aerator)	1.5–2.2 GPM (adjustable aerator)
Water Pressure Rating	0.05–0.8 MPa	0.05–0.8 MPa
Leak Test	0.6 MPa, 60 seconds, 100% of units	0.6 MPa, 60 seconds, 100% of units
Supply Connections	3/8" compression (standard); G1/2" available	3/8" compression (standard); G1/2" available
Hole Configuration	3-hole, 4-inch center	3-hole widespread, 8-inch center
Available Finishes	Chrome, brushed nickel, matte black, PVD gold, oil-rubbed bronze	Chrome, brushed nickel, matte black, PVD gold, oil-rubbed bronze
Certifications	cUPC CE WaterMark SGS	cUPC CE WaterMark SGS
OEM MOQ	200 pieces per SKU	200 pieces per SKU
Standard Lead Time	25–35 days (catalog); 35–50 days (OEM with new tooling)	25–35 days (catalog); 35–50 days (OEM with new tooling)

Specifications shown are industry-standard values for this product type. Actual specifications may vary by configuration. Contact us for detailed product data sheets.

Request Detailed Specifications

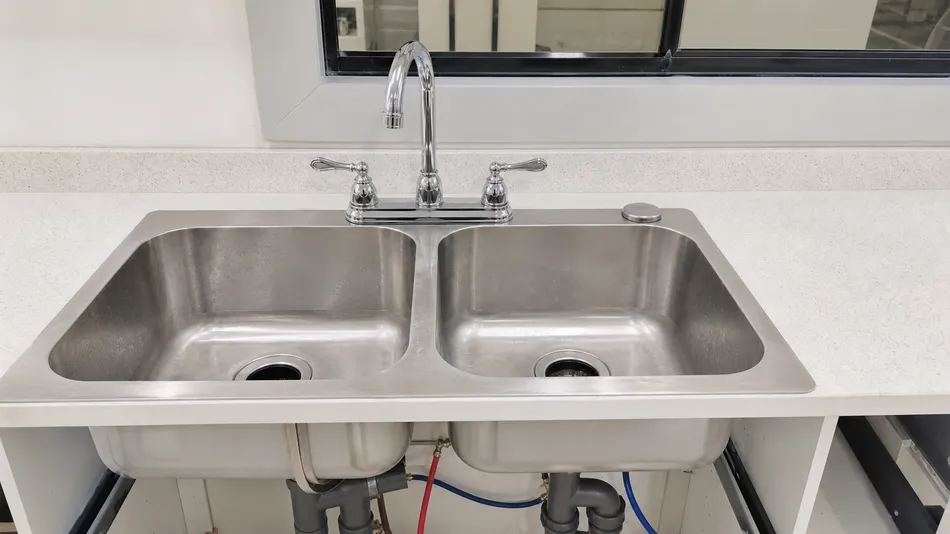

Deck-mount two handle kitchen faucet — 3-hole 4-inch center configuration

3-Hole Configuration

Deck-Mount (4-Inch Center)

Fits standard 3-hole sink decks with 4-inch center spacing
Compact footprint — ideal for mid-range and production kitchens
Broadest installer compatibility; no special deck prep required
Available in all five standard finishes
MOQ 200 pcs; catalog lead time 25–35 days

Request samples or pricing

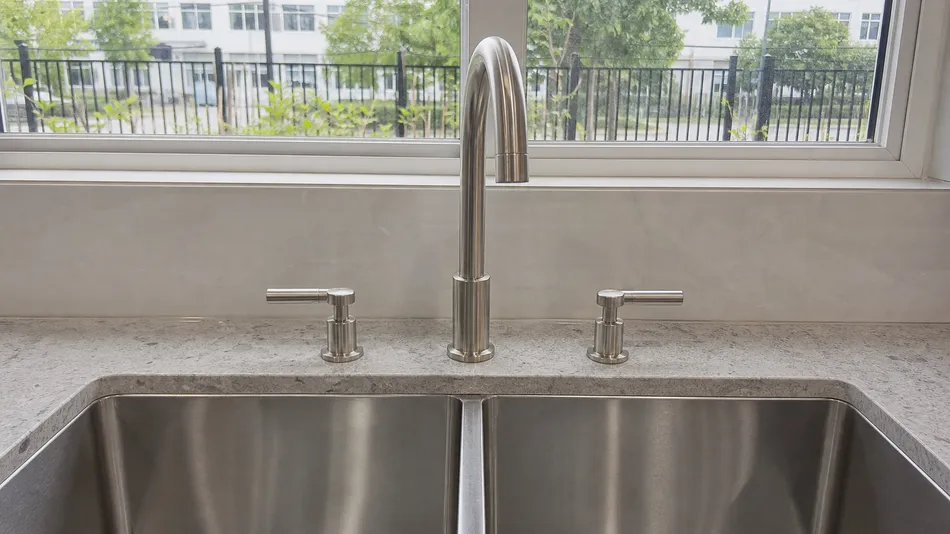

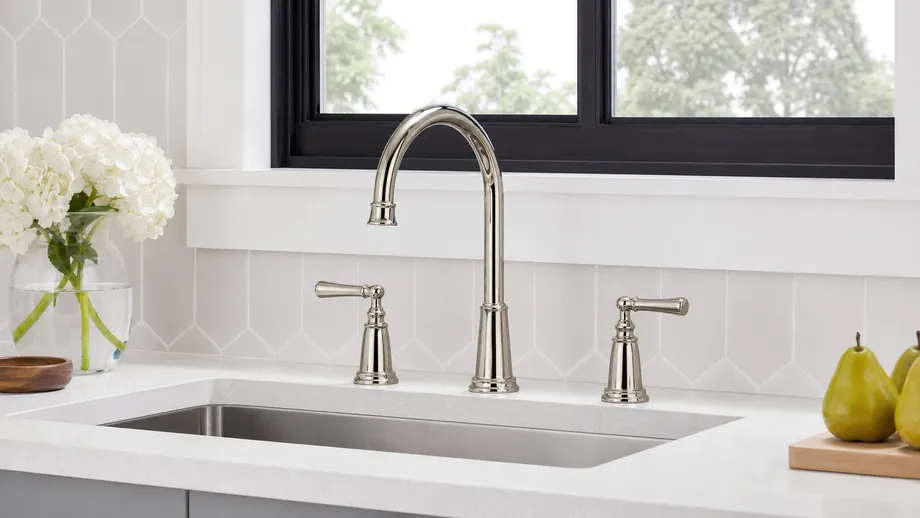

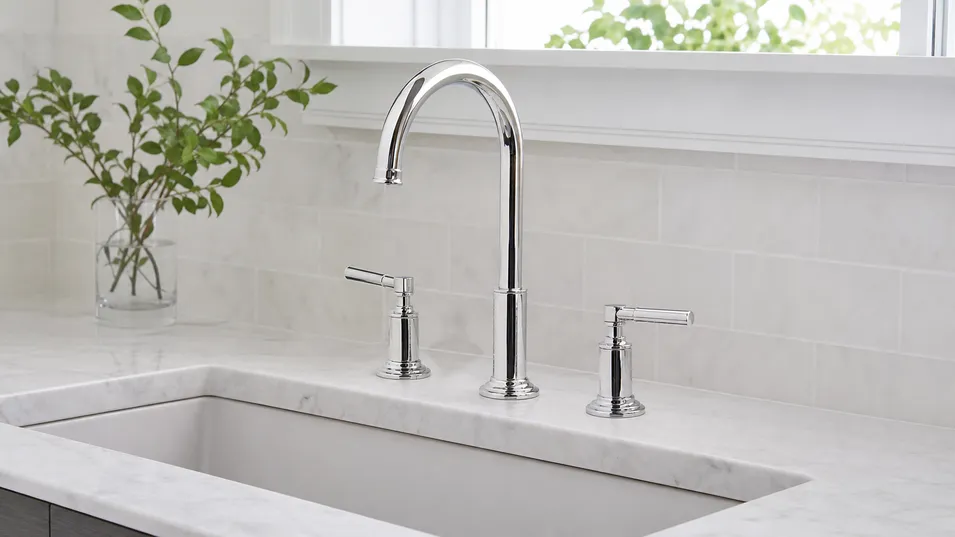

Widespread two handle kitchen faucet — 8-inch center configuration

Widespread Configuration

Widespread (8-Inch Center)

8-inch standard center; 6–16 inch adjustable on request
Separate body and handle valves — premium architectural look
Specified for traditional, transitional, and European kitchen styles
Available in all five standard finishes including PVD gold
MOQ 200 pcs; catalog lead time 25–35 days

Request samples or pricing

Built to Last

Construction & Materials

Every component in our two handle kitchen faucet line is selected for longevity in commercial and residential use. Here is what goes into each unit.

Brass Body — C36000-Equivalent

Free-machining brass with low lead content. Corrosion-resistant in hard and soft water conditions. CNC-machined to tight tolerances for consistent valve seat geometry across production runs.

Low Lead CNC-Machined Corrosion Resistant

Ceramic Disc Cartridge

Alumina ceramic discs rated to 500,000 operating cycles per batch test. One cartridge per handle — independent hot and cold control with no cross-flow. Field-replaceable without full valve disassembly.

500K Cycles Field-Replaceable No Cross-Flow

PVD & Electroplated Finishes

Physical vapour deposition (PVD) for gold and specialty tones. Multi-layer electroplating for chrome and brushed nickel. All finishes tested to ASTM B117 salt-spray standards for tarnish and corrosion resistance.

PVD Gold ASTM B117 Tested 5 Finishes

Adjustable Aerator

Stainless mesh aerator with flow restrictor. Adjustable between 1.5 and 2.2 GPM to meet regional water efficiency codes. Cache-style housing for tool-free removal and cleaning.

1.5–2.2 GPM Tool-Free Removal Stainless Mesh

Braided Supply Lines

304 stainless braided hoses with EPDM inner tube. Burst-tested to 10× working pressure. Standard 3/8" compression fittings; G1/2" available for European markets. Length options: 300mm, 450mm, 600mm.

304 SS Braid EPDM Inner Burst-Tested

EPDM Seals & O-Rings

EPDM elastomer throughout — rated for continuous use from 0°C to 100°C. Resistant to chlorinated water and common cleaning agents. All sealing points 100% leak-tested at 0.6 MPa before shipment.

0–100°C Rated Chlorine Resistant 100% Leak-Tested

Factory Quality Control Protocol

Each production batch goes through a structured QC sequence before release. Dimensional inspection on valve seat geometry, 100% hydrostatic leak test at 0.6 MPa, finish adhesion check per ASTM B117, and cartridge cycle sampling at 500,000 operations. Third-party inspection (SGS, BV, or buyer-nominated) is available on request.

100%

Leak Tested

500K

Cycle Rated

ASTM

B117 Finish

3rd

Party Available

Surface Finishes

Available Finishes

Five standard finishes cover the full range of kitchen design briefs — from contract hospitality to premium residential. Custom finishes available on OEM orders above 500 pieces.

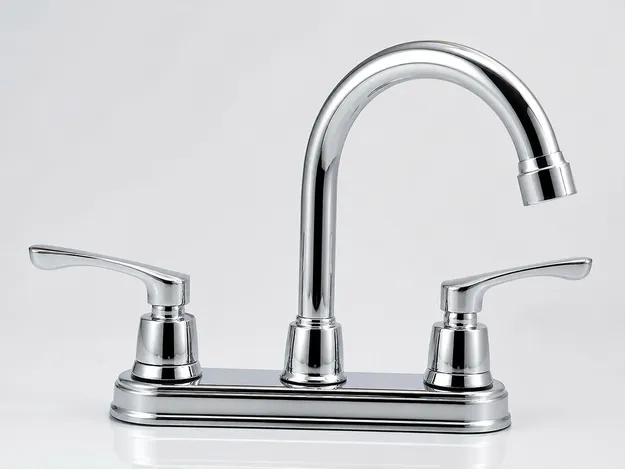

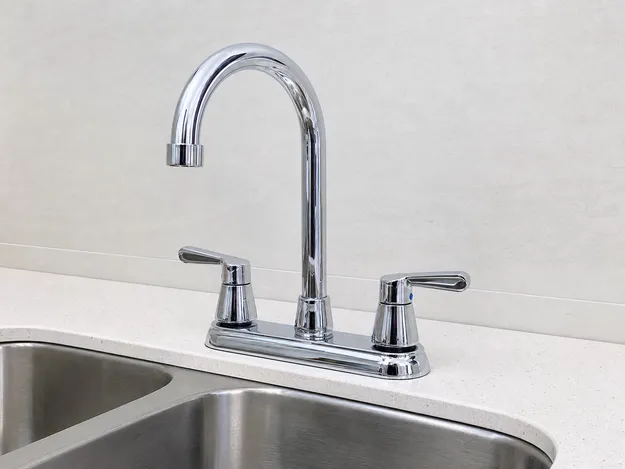

Chrome

High-gloss mirror finish. Most specified for contract and hospitality. Easy to clean; shows water spots.

Standard

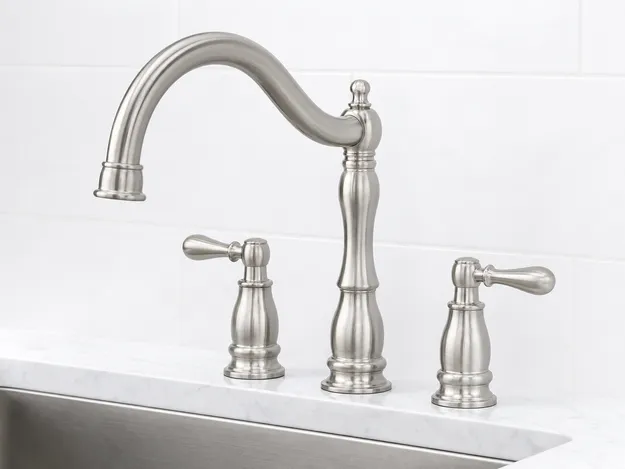

Brushed Nickel

Satin warm-grey tone. Hides fingerprints and minor scratches. Pairs with stainless appliances.

Standard

Matte Black

Flat non-reflective black. High demand in contemporary and industrial kitchen designs. Powder-coat over PVD base.

Standard

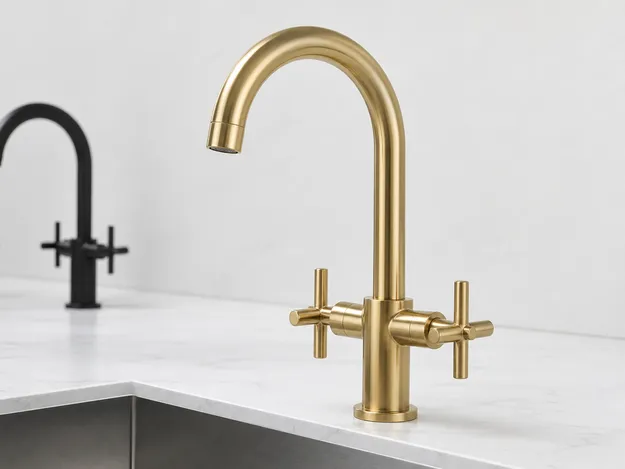

PVD Gold

Physical vapour deposition gold. Harder and more durable than traditional plating. Tarnish-resistant over long service life.

Standard

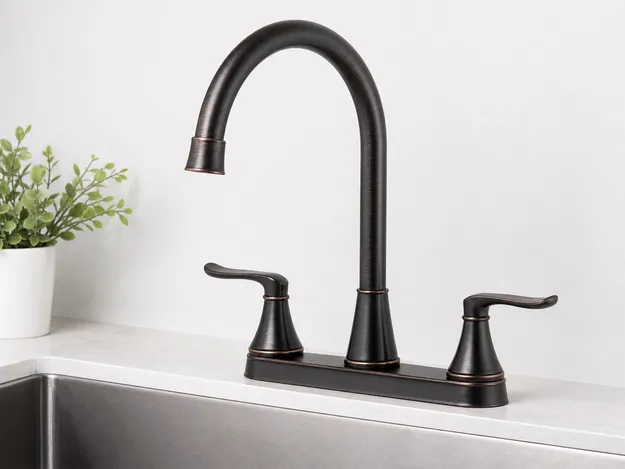

Oil-Rubbed Bronze

Dark warm-brown with hand-rubbed highlights. Specified for traditional and farmhouse kitchen styles.

Standard

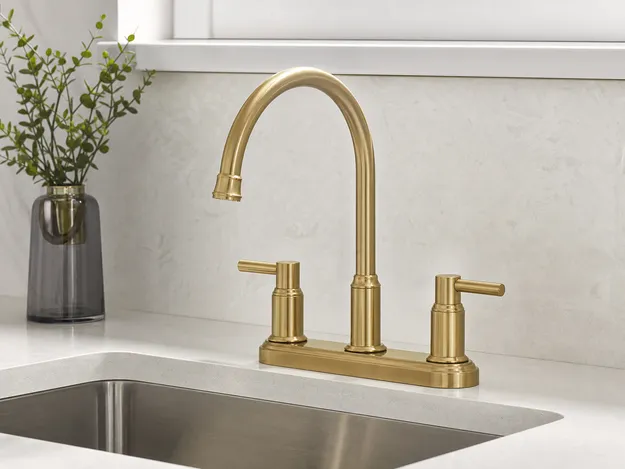

Custom finishes available — brushed gold, gunmetal, champagne bronze, and RAL powder coat on OEM orders of 500+ pieces. Lead time adds 10–15 days for new finish qualification.

Discuss Custom Finish

Engineering Detail

The Cartridge System: Why Two Independent Valves Change the Maintenance Equation

This is the part of the two-handle design that matters most to buyers supplying commercial or rental segments — it directly affects your downstream customers' total cost of ownership, which in turn affects your return rate and reorder frequency.

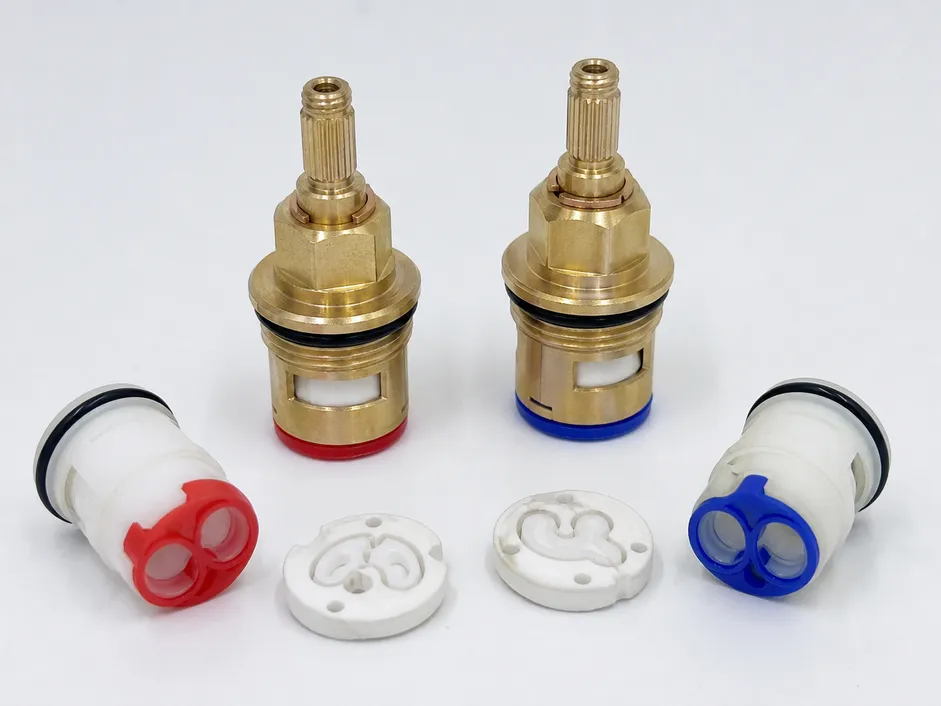

Ceramic disc cartridge for two-handle kitchen faucet showing independent hot and cold valve components

500,000-Cycle Endurance Testing

We run 500,000-cycle endurance testing on every production batch of cartridges — not just on new product introductions.

We made this a per-batch requirement after seeing a supplier pass initial qualification testing but show early failure rates in the field. The per-batch protocol catches production variation before it reaches your customers.

At 500,000 cycles, a cartridge used 20 times a day would last nearly 70 years. In practice, the ceramic disc seals long outlast the faucet's aesthetic life in most applications.

Isolated Fault, Minimal Downtime

Each handle operates its own ceramic disc cartridge. The hot side and cold side are mechanically independent. When a drip develops, the fault is isolated to one side. A plumber or maintenance technician can replace a single cartridge in under 15 minutes without removing the faucet body from the sink.

Standard, Inexpensive Replacement Parts

The replacement part is a standard ceramic disc cartridge — widely available and inexpensive. Your buyers in the rental and hospitality segments are not going to be calling you about drip failures.

Two-Handle vs. Single-Handle: The Repair Comparison

On a single-handle faucet, the cartridge controls both temperature and flow. A cartridge failure means the entire mixing function is compromised. The repair is still straightforward, but the cartridge is a more complex component, and the failure affects the full functionality of the faucet rather than just one temperature side.

500,000

Cycles per batch test

<15 min

Single cartridge replacement

~70 yrs

Projected service life at 20 cycles/day

Market Intelligence

Market Segments Where Two-Handle Configurations Drive Volume

The two handle kitchen faucet has a specific commercial geography. Knowing where it moves helps you decide how much catalog space to give it and which configurations to lead with.

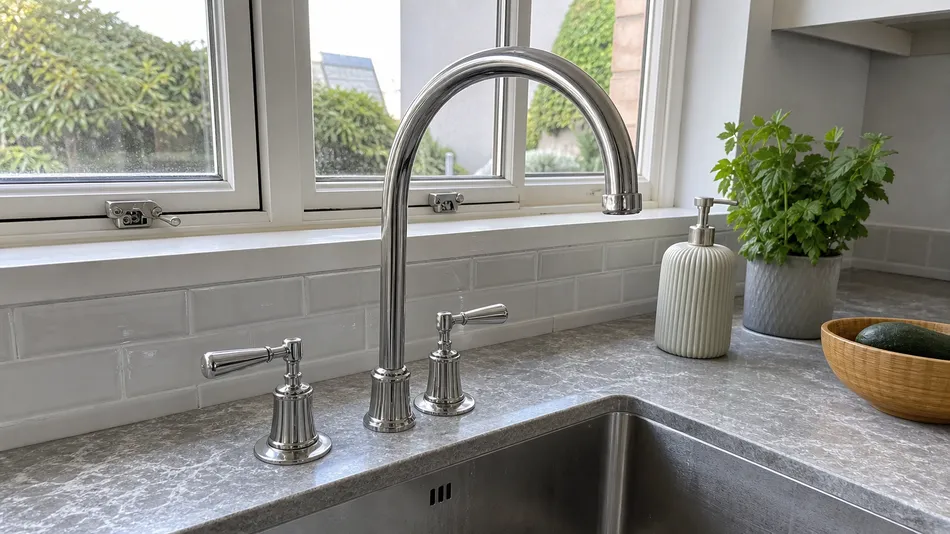

European residential kitchen installation with two-handle faucet in chrome and brushed nickel finish

European Residential Distribution

Germany, France, UK, Benelux

Two-handle kitchen faucets remain the dominant configuration in many European markets, particularly in traditional and transitional kitchen styles. The widespread 8-inch configuration is common in higher-end European kitchen installations.

Core SKUs: Chrome and brushed nickel in widespread 8-inch configuration — not secondary options.

CE Certified — EN 817 & EN 200

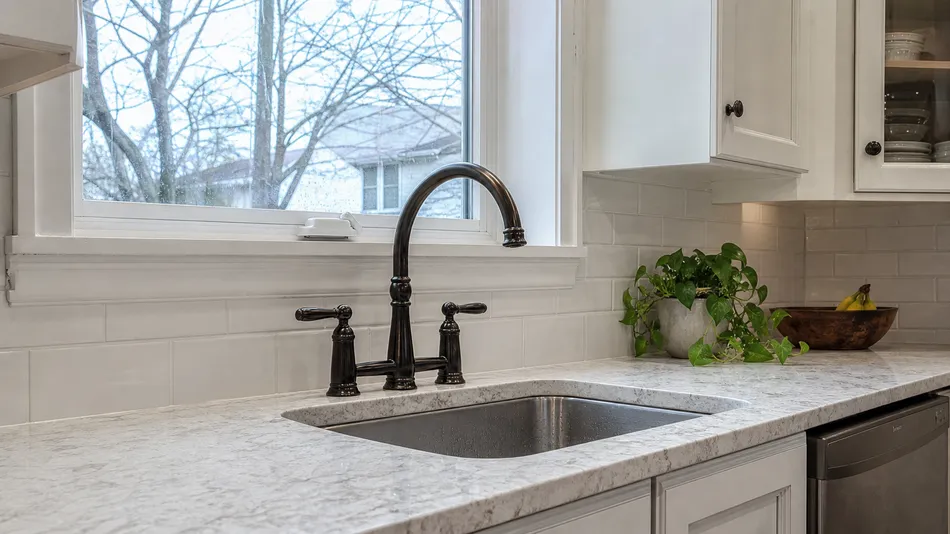

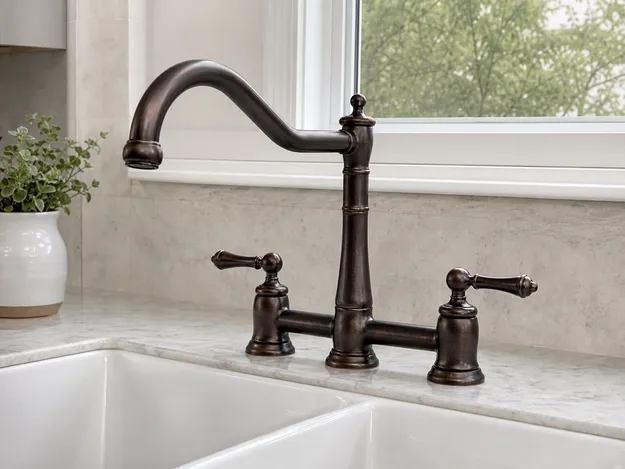

North American traditional kitchen renovation with two-handle faucet in oil-rubbed bronze finish

North American Renovation

Traditional & Transitional Kitchen Renovation

The single-handle pull-down has taken the majority of the North American kitchen faucet market, but the two-handle configuration holds a durable position in the traditional and transitional style segments. Buyers supplying renovation contractors who work in older homes — where the sink already has 3-hole or widespread drilling — frequently specify two-handle to match the existing aesthetic.

Finishes that move: Oil-rubbed bronze and brushed nickel. This is not a declining category — it's a stable niche with predictable volume and consistent reorder patterns.

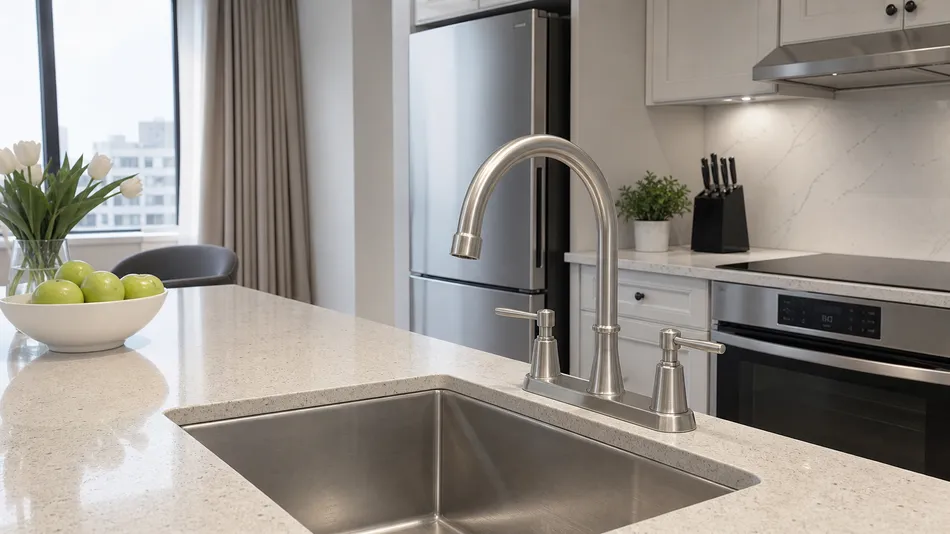

Hospitality and contract specification kitchen with two-handle faucet in brushed nickel for hotel serviced apartment

Hospitality & Contract Specification

Hotels, Serviced Apartments & Rental Developers

Hotels, serviced apartments, and rental property developers specify kitchen faucets in volume. Two-handle configurations are common in hospitality projects targeting a traditional or classic aesthetic, and the repairability argument resonates with facilities managers maintaining hundreds of units.

Most requested: Widespread configurations in brushed nickel or PVD gold.

OEM available: Custom handle profiles from 200 pieces for aesthetic consistency across large projects.

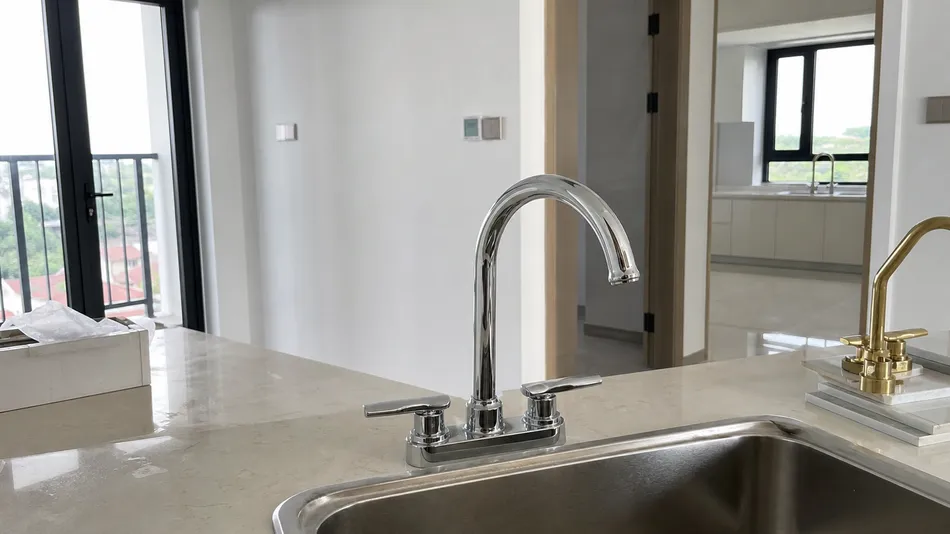

New construction residential development project in Middle East and Southeast Asia specifying two-handle kitchen faucets

New Construction Project Supply

Middle East & Southeast Asia Development

Residential development projects in the Middle East and Southeast Asia frequently specify two-handle kitchen faucets for mid-range and premium units. Lead time reliability is the primary sourcing requirement in this channel — a delayed container can hold up an entire floor of unit completions.

Volume configuration: Chrome deck-mount. Premium tier: Brushed nickel and PVD gold.

4-week production scheduling window — committed lead time.

Sourcing for a Specific Segment?

Whether you're building a catalog for European residential distribution, supplying a hospitality project, or fulfilling a new construction contract in the Middle East or Southeast Asia, we can configure SKUs, finishes, and OEM options to match your channel requirements.

Get a Quote

Finish Selection Guide

Finish Options and What Each Means for Your Margin

All five finishes run on our in-house lines — no subcontracting — so finish consistency across a mixed-SKU order is controlled by one team. For two-handle kitchen faucets specifically, finish selection is often driven by the kitchen style the buyer is targeting, which maps directly to the retail price point they can support.
