Kitchen Collection · Wall Mount

Wall Mount Kitchen Faucets by Wfaucet

Brass body, adjustable rough-in ±15mm, multi-market certified. OEM from 200 pieces.

Specified for farmhouse sinks, commercial-style kitchens, and renovation projects where the countertop has no pre-drilled holes. Rough-in depth adjustable ±15mm to accommodate varying wall thicknesses across your project portfolio.

cUPC Certified CE Certified WaterMark 500K-Cycle Cartridge OEM from 200 pcs
Get a Quote All Kitchen Faucets

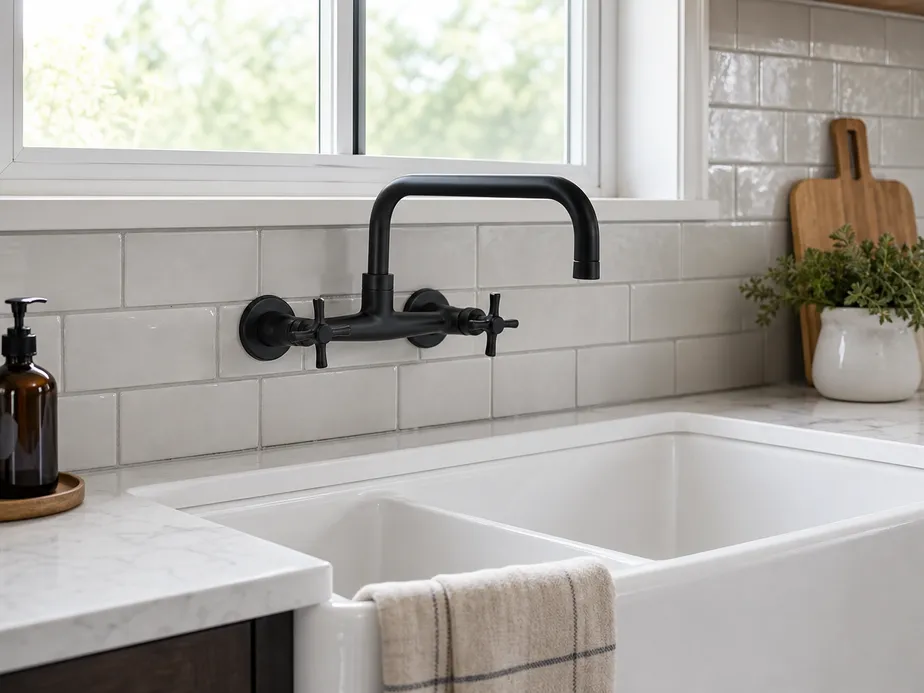

Wall mount kitchen faucet with brass body and matte black finish installed above farmhouse sink

Specification Logic

What Makes Wall Mount the Specification That Wins Certain Projects

A wall mount kitchen faucet is not a substitute for a deck-mount — it's the correct answer for a specific set of installation conditions, and buyers who understand that positioning move product more efficiently than those who treat it as a niche variant.

The core commercial case: wall mount is specified whenever the countertop or sink deck is unavailable or undesirable as a mounting surface. Farmhouse apron-front sinks have no deck. Commercial-style kitchen renovations often specify wall mount for the clean countertop line it creates. Renovation projects where the existing countertop has no pre-drilled holes — and the buyer doesn't want to drill — reach for wall mount as the path of least resistance.

In each of these scenarios, the buyer isn't choosing wall mount over deck mount; they're choosing it because deck mount isn't viable. That specificity is what makes wall mount a reliable segment for your catalog. The buyers who need it know they need it, and they're not price-shopping against deck-mount alternatives. The decision is already made — they're evaluating which wall mount faucet to source.

Our wall mount kitchen faucet line is built on the same C36000-equivalent free-machining brass body platform as the rest of our kitchen range. The wall-specific engineering is in the rough-in assembly: adjustable supply tube depth of ±15mm from the standard rough-in position, which is the tolerance range that covers the variation in wall thickness and tile depth you encounter across different construction standards.

We added the ±15mm adjustment range after early feedback from buyers supplying renovation contractors — fixed rough-in depth was generating installation callbacks when tile thickness varied from the spec.

Get a Quote for Wall Mount Kitchen Faucets

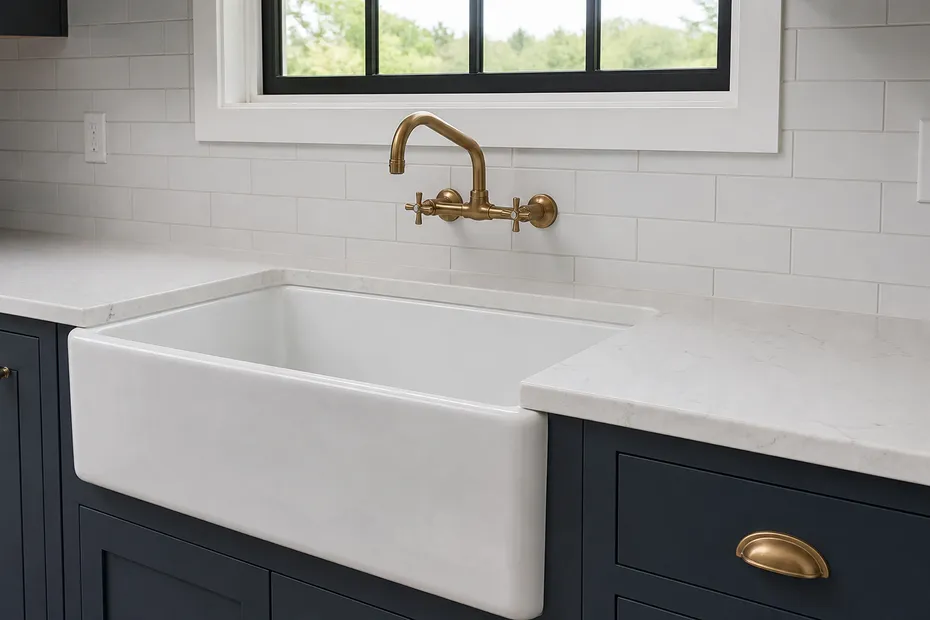

Wall mount kitchen faucet installed above farmhouse apron-front sink showing clean countertop line

Farmhouse Sinks

Apron-front sinks have no deck — wall mount is the only viable specification.

Commercial-Style Kitchens

Clean countertop line is a design requirement, not a preference.

Renovation Projects

No pre-drilled holes in the existing countertop — wall mount avoids the drilling step entirely.

Engineering Data

Technical Specifications

These are the standard parameters for our wall mount kitchen faucet line. Exact values for a specific configuration — spout height, handle style, finish — are confirmed at the quotation stage.

Standard Parameter Reference

Wall Mount Kitchen Faucet Line

Parameter Specification
Body Material C36000-equivalent free-machining brass
Valve / Cartridge Ceramic disc, 500,000-cycle endurance tested per batch
Mounting Type Wall mount — supply connections through wall
Rough-In Depth Adjustment ±15mm from standard position
Standard Rough-In Center Distance 150mm (6") — custom spacing available on OEM orders
Spout Height (from wall) 200–280mm typical; custom heights available
Spout Reach 180–230mm typical
Spout Rotation 360° swivel standard
Flow Rate 1.5–2.2 GPM (adjustable aerator; WaterSense-compatible configurations available)
Water Pressure Rating 0.05–0.8 MPa operating range
Leak Test Standard 0.6 MPa, 60 seconds, 100% of units
Supply Connections 3/8" compression (standard); G1/2" available for European market
Handle Configuration Single-handle (standard); two-handle available
Surface Finishes Chrome, brushed nickel, matte black, PVD gold, oil-rubbed bronze
Salt Spray (chrome/nickel) 24h minimum; 48h on new finish batches
Salt Spray (PVD finishes) 48h minimum; cross-cut adhesion tested per batch
Certifications
cUPC CE WaterMark SGS
OEM MOQ 200 pieces per SKU
Standard Lead Time 25–35 days (catalog items); 35–50 days (OEM with new tooling)

Specifications shown are standard values for this product line. Actual parameters may vary by configuration. Contact us for detailed product data sheets and exact specifications for your order.

Request Detailed Specifications

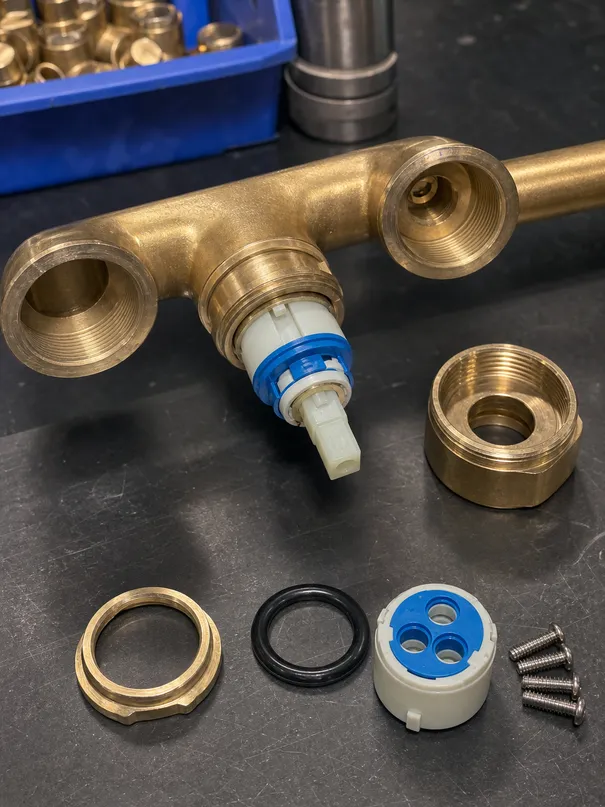

Close-up of wall mount kitchen faucet brass body construction and ceramic disc cartridge assembly

Brass Body Platform

C36000-equivalent free-machining brass — same platform as the full kitchen range.

±15mm Rough-In Adjustment

Covers wall thickness and tile depth variation across construction standards. Eliminates installation callbacks.

100% Leak Tested

Every unit tested at 0.6 MPa for 60 seconds before shipment.

500,000-Cycle Valve

Ceramic disc cartridge endurance tested per batch — not just per design approval.

Private Label & OEM

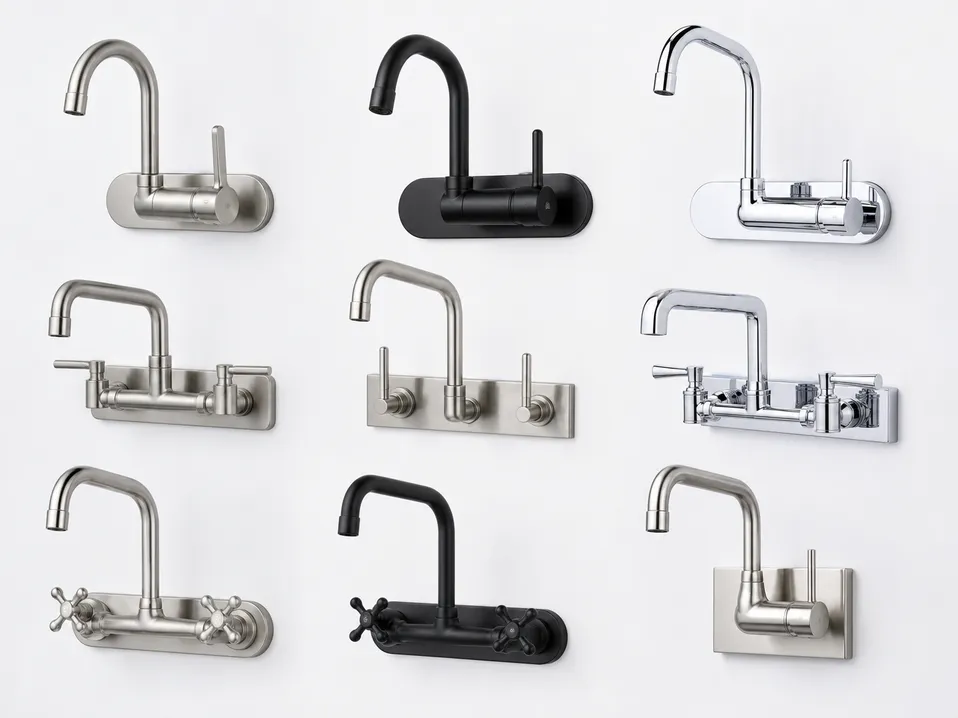

Customization Options

The wall mount kitchen faucet platform is built for OEM and private label programs. Geometry, finish, handle style, branding, and packaging are all configurable — with a 200-piece MOQ per SKU.

Surface Finish

Chrome, brushed nickel, matte black, PVD gold, and oil-rubbed bronze are standard. Custom PVD colors and special-order finishes are available for larger programs. All finishes are salt-spray tested per batch.

Spout Geometry

Spout height, reach, and arc profile are adjustable within the platform's tooling envelope. Pull-down and pull-out spray head configurations are available. New spout tooling is quoted per program.

Handle Style & Configuration

Single-lever, cross-handle, and lever-pair configurations are all supported. Handle shape, length, and material (brass, zinc, stainless) can be specified. Ergonomic and ADA-compliant handle profiles available.

Flow Rate & Aerator

Aerator flow rate is configurable from 1.5 to 2.2 GPM. WaterSense-compliant (1.5 GPM) configurations are available for North American programs. Laminar-flow aerators available for commercial applications.

Rough-In Center Distance

Standard 150mm (6") center-to-center spacing. Custom spacing is available for OEM programs targeting specific regional rough-in standards — confirm at the quotation stage.

Branding & Packaging

Private label engraving, logo badges, and custom retail packaging are all available. Instruction manuals and installation guides can be produced in your brand language and market language.

Market Certifications

cUPC, CE, WaterMark, and SGS are available. Additional market-specific certifications can be coordinated — confirm requirements at the quotation stage so testing is scoped correctly.

OEM Program at a Glance

Minimum Order Quantity 200 pcs / SKU
Catalog Lead Time 25–35 days
OEM with New Tooling 35–50 days
Sample Lead Time 7–14 days
Private Label Available
Discuss Your OEM Program

How OEM Orders Work

  1. 1

    Submit Requirements

    Share your target market, finish, handle style, flow rate, and any certification requirements via the inquiry form.

  2. 2

    Quotation & Spec Sheet

    We return a detailed quotation with exact dimensions, finish options, tooling costs (if any), and lead time within 2 business days.

  3. 3

    Sample Approval

    Pre-production samples are shipped for your review and approval before mass production begins. Typically 7–14 days.

  4. 4

    Production & QC

    Mass production runs with 100% leak testing and finish inspection. Third-party inspection available on request.

  5. 5

    Shipment & Documentation

    Full export documentation, test reports, and compliance certificates shipped with the order.

Installer Reference

Installation Overview

Wall mount kitchen faucets require rough-in work during the framing or tile stage. This overview covers the key steps and measurements your plumber or installer needs. Full installation instructions are included with every unit.

1

Rough-In: Supply Line Placement

Before closing the wall, position the hot and cold supply stubs at the correct height and center distance. Standard center-to-center spacing is 150mm (6"). The ±15mm rough-in adjustment covers minor positioning errors after tiling.

Key measurement: Supply stub height above finished floor is determined by your chosen spout height and sink depth. Confirm this dimension before closing the wall.
2

Wall Preparation & Blocking

Install solid blocking between studs at the faucet mounting location. The wall surface must be flat and plumb. Tile or stone surfaces should be fully cured before faucet installation.

Note: The escutcheon plates cover the supply penetrations and provide a finished appearance. Ensure the wall surface is smooth and level at the mounting area.
3

Valve Body Installation

Thread the valve body onto the supply stubs using the supplied fittings. Hand-tighten first, then torque to specification. Do not overtighten — brass threads are precise and do not require excessive force.

Tip: Apply PTFE tape to all threaded connections. Use two wraps minimum on supply connections.
4

Spout & Handle Assembly

Attach the spout to the valve body and secure the handle(s). The 360° swivel spout uses a captured O-ring seal — inspect the O-ring before assembly and apply a light coat of plumber's grease.

Check: Confirm the spout rotates freely through its full arc before proceeding to the pressure test.
5

Pressure Test & Commissioning

Restore water supply slowly and check all connections for leaks. Run both hot and cold through the full handle range. Flush the aerator screen after the first run to clear any installation debris.

Final check: Verify the handle stops are correctly set and the flow rate is within the expected range before signing off.
Request Full Installation Manual (PDF)

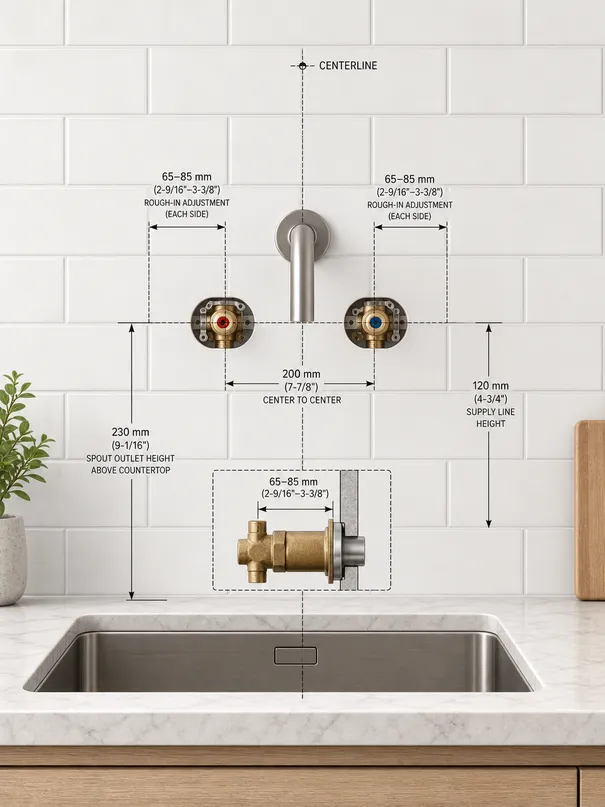

Wall mount kitchen faucet rough-in diagram showing supply line placement, center distance, and height measurements

Installer Notes

  • Confirm supply stub height before closing the wall — this is the most common source of installation errors.

  • The ±15mm rough-in adjustment accommodates tile depth variation — use it, don't fight it.

  • Escutcheon plates are finish-matched — order the correct finish at the same time as the faucet body.

  • Do not use pipe wrenches on the faucet body — use the correct basin wrench or strap wrench to avoid finish damage.

  • Flush the supply lines before connecting to the faucet to prevent debris from reaching the ceramic cartridge.

Tools Required

Adjustable wrench
Strap wrench
PTFE tape
Plumber's grease
Level
Tape measure
Installation Engineering

The Rough-In Engineering That Determines Installation Success

Wall mount faucets fail in the field for one reason more than any other: rough-in depth mismatch. We engineer against this specifically.

The supply connections come through the wall at a fixed depth, the tile or wall finish adds thickness that wasn't accounted for in the rough-in, and the escutcheon plate doesn't seat flush. The installer either has to open the wall or leave a visible gap. Either outcome generates a callback, and callbacks in a project supply context mean your buyer is fielding complaints from a general contractor.

Adjustable Depth System

The rough-in assembly uses a threaded supply tube with ±15mm of adjustable depth — the escutcheon plate seats flush across a 30mm range of wall finish thickness variation.

  • Standard drywall installations
  • Tile-over-drywall assemblies
  • Most stone tile installations without modification
  • Extended range available on OEM orders for unusually thick wall assemblies

PTFE Compression Fitting — Not Tape-Sealed Threads

The supply tube threads are G1/2" male on the wall side, with a compression fitting on the faucet body side. We use a PTFE-sealed compression joint rather than thread sealant tape.

The compression fitting torques to a defined spec and seals reliably. It doesn't depend on the installer applying the right number of tape wraps.

We switched from tape-sealed threads on this joint after seeing a pattern of slow leaks traced back to under-wrapped tape on installations done by less experienced plumbers — the compression fitting eliminated that failure mode.

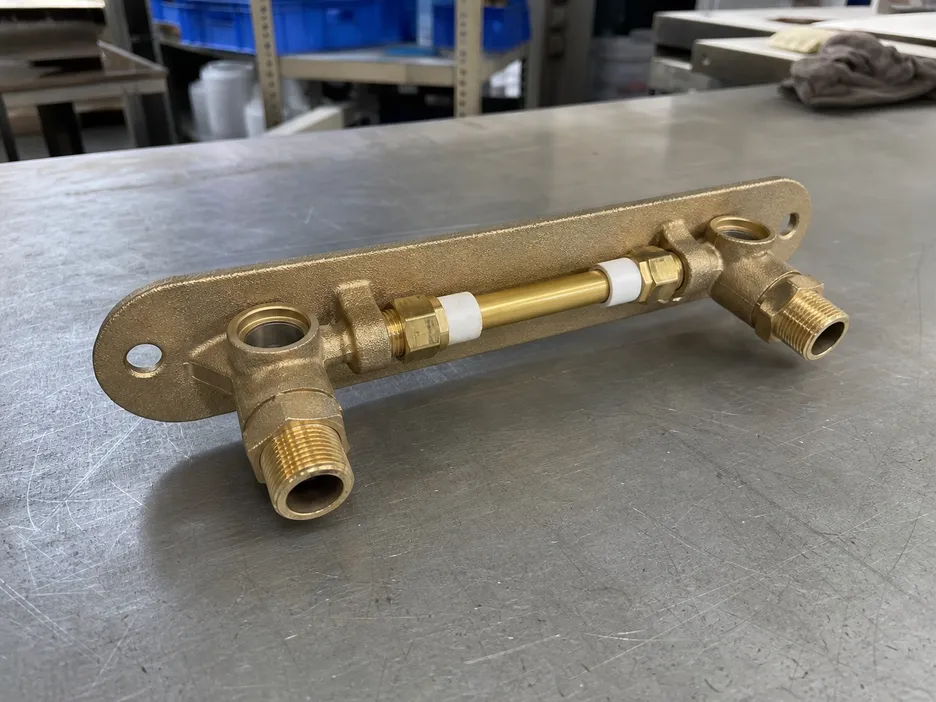

Wall mount faucet rough-in assembly showing adjustable depth supply tube and escutcheon plate

Cast Brass Escutcheon — Not Stamped

The escutcheon plate is cast brass, not stamped. Stamped escutcheons flex under the compression of the mounting nut and can crack at the edges over time, especially in installations where the wall surface isn't perfectly flat.

Cast brass holds its geometry. It adds a small amount to the unit cost, but the alternative is a warranty claim on a product that's already been tiled into a wall.

A repair scenario on a tiled-in wall costs your buyer far more than the cost difference between stamped and cast brass. The escutcheon spec is a margin protection decision, not a materials upgrade.

±15mm

Adjustable Depth Range

G1/2"

Wall-Side Thread Standard

Volume Channels

Market Segments Where Wall Mount Generates Repeatable Volume

Four distinct channels drive consistent wall mount kitchen faucet volume. Each has its own specification trigger, order pattern, and documentation requirement.

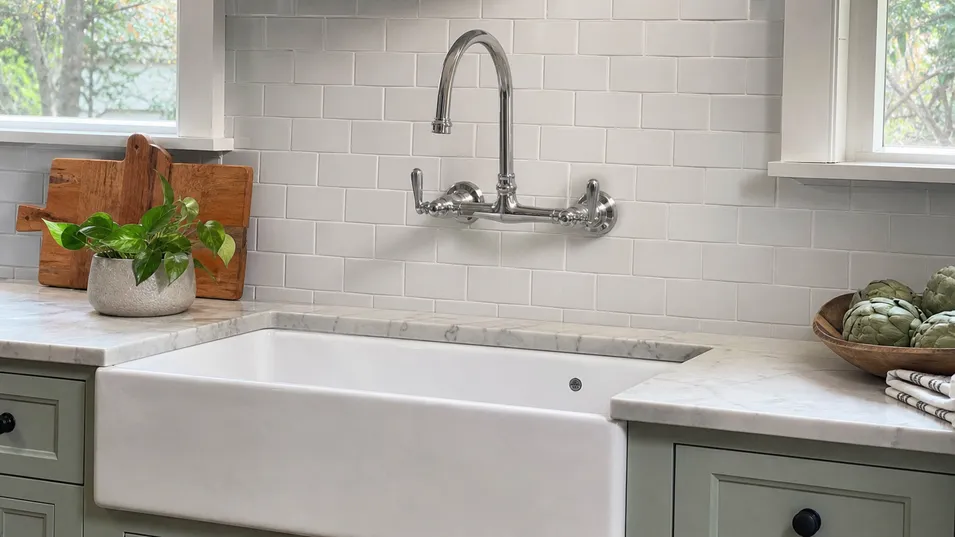

Wall mount kitchen faucet paired with farmhouse apron-front sink in residential kitchen renovation

Segment 01

Farmhouse & Apron-Front Sink Supply

The highest-volume segment for wall mount kitchen faucets in North American residential distribution. Farmhouse sinks have no deck, so wall mount is the only viable faucet configuration.

Buyers supplying kitchen renovation distributors or specialty plumbing showrooms in the US and Canada find that wall mount moves consistently alongside farmhouse sink SKUs — the two products are often specified together, and a buyer who stocks one without the other is leaving margin on the table.

Typical Order Pattern

300–800 units per SKU per order, with reorders tied to the renovation season cycle.

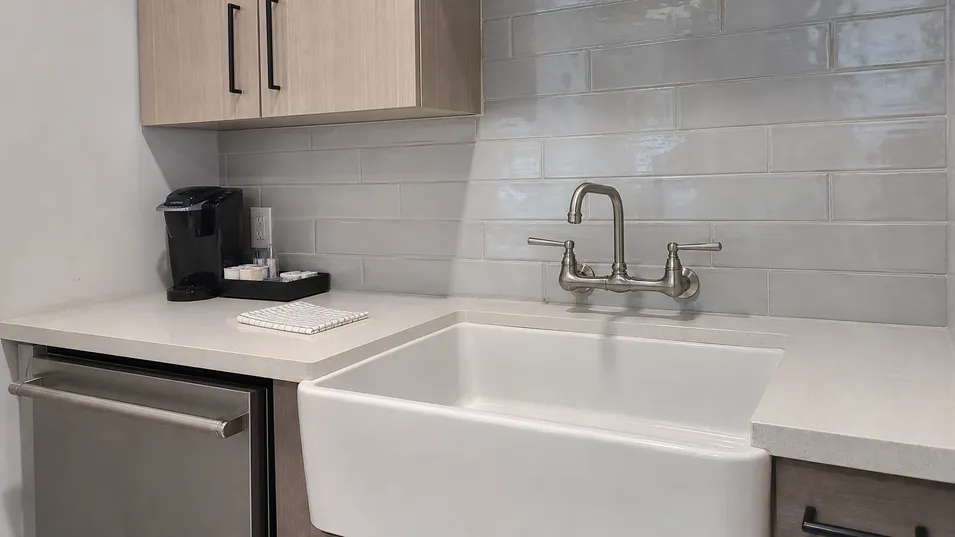

Wall mount faucet in hotel kitchen or serviced apartment compact kitchen configuration

Segment 02

Hospitality & Contract Specification

Hotel kitchen renovations and serviced apartment fit-outs frequently specify wall mount for the clean countertop aesthetic it creates in compact kitchen configurations.

The specification is locked in early, which means the buyer who gets on the approved vendor list for a project chain has a predictable revenue stream. Two-handle configurations in brushed nickel and PVD gold are the most requested in this segment.

Typical Order Pattern

500–2,000 units per project for mid-scale hotel renovations.

This segment has grown steadily over the past three years, particularly from buyers supplying the Middle East and Southeast Asia hospitality markets.

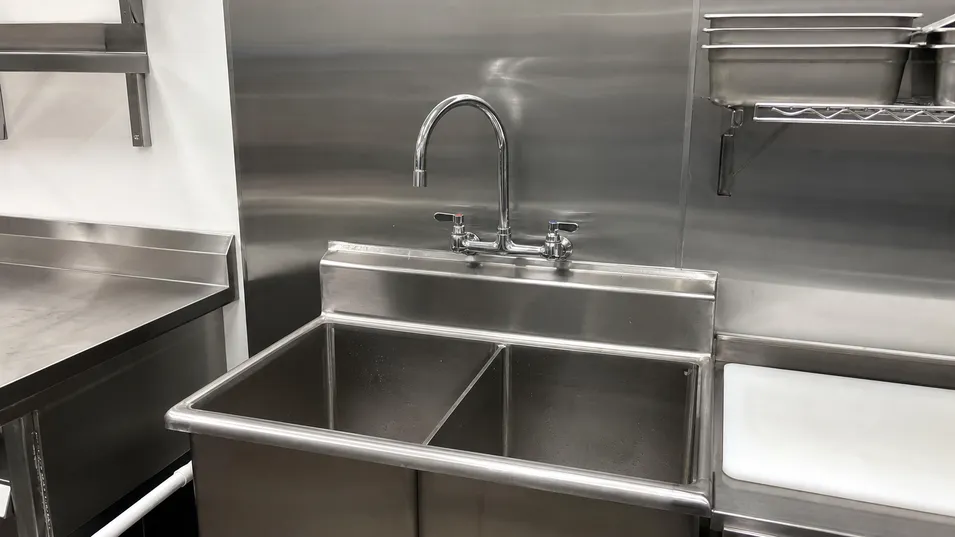

Commercial kitchen wall mount faucet with gooseneck spout in food service installation

Segment 03

Commercial Kitchen & Food Service

Wall mount is specified for practical reasons: it keeps the countertop clear for food prep, and wall-mounted plumbing is easier to clean around than deck-mounted hardware.

Buyers supplying restaurant equipment distributors or commercial kitchen fit-out contractors find that wall mount kitchen faucets with commercial-style gooseneck spouts are a consistent specification item.

Entry Requirement

cUPC documentation is the entry requirement for this channel in North America. Our certified product covers it.

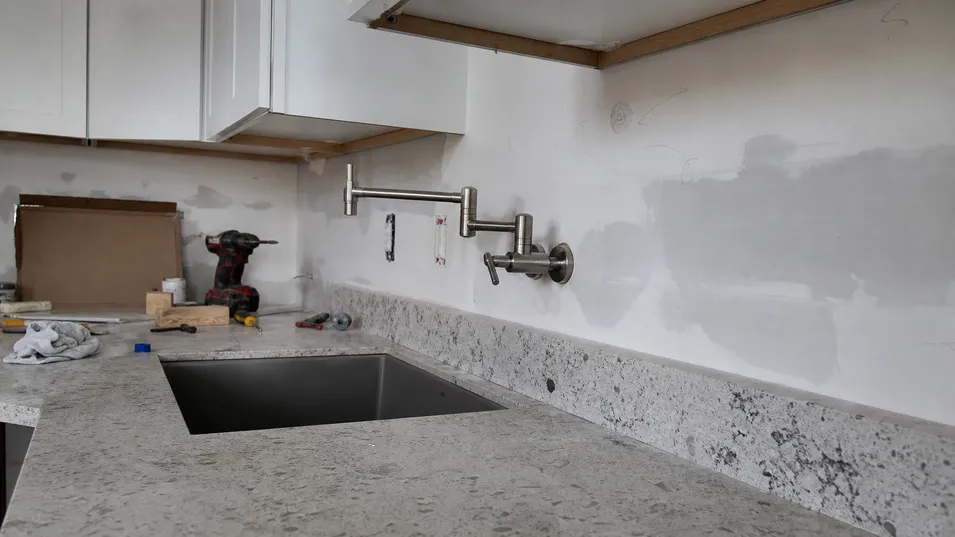

Wall mount faucet installation in kitchen renovation where countertop has no pre-drilled holes

Segment 04

Renovation & Remodel Supply

The broadest segment. Any renovation project where the existing countertop is being retained but the faucet is being replaced — and the countertop has no pre-drilled holes — is a wall mount specification.

Renovation contractors who work in older housing stock encounter this regularly. Buyers supplying renovation-focused plumbing distributors or building material wholesalers find wall mount a reliable catalog addition.

Catalog Positioning

Wall mount doesn't cannibalize deck-mount volume — it serves a different installation condition. It's an additive SKU, not a substitution.

300–800

Units / SKU — Residential

500–2,000

Units / Project — Hospitality

4

Distinct Volume Channels

Discuss Your Target Market and Volume

Tell us which segment you're supplying and we'll match you with the right SKU configuration, certification package, and MOQ.

Get a Quote

Related Kitchen Faucet Configurations

Farmhouse Kitchen Faucets Gooseneck Kitchen Faucets Two Handle Kitchen Faucets Deck Mount Kitchen Faucets Brushed Nickel Kitchen Faucets

Surface Engineering

Finish Options and What Each Means for Your Margin

All five finishes run on our in-house lines — no subcontracting — so finish consistency across a mixed-SKU order is controlled by one team. For wall mount specifically, finish selection matters more than on deck-mount because the escutcheon plate and supply tube covers are visible on the wall surface and need to match the faucet body precisely. We finish all components together in the same batch to ensure color consistency.

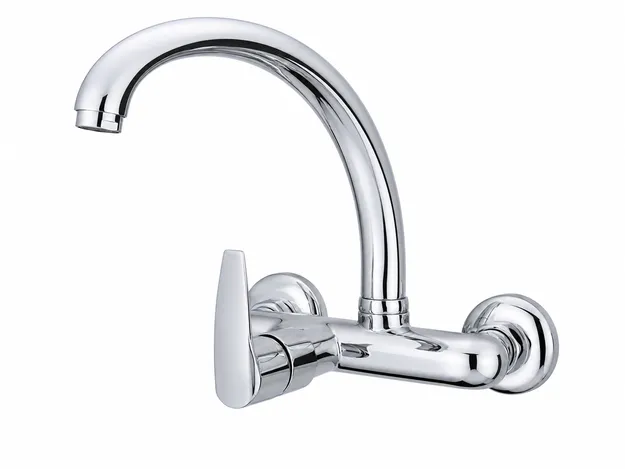

Chrome finish wall mount kitchen faucet — multi-layer electroplated

Chrome

Multi-Layer Electroplated

Copper base, nickel mid-coat, chrome top. Passes 24h salt spray minimum; most batches clear 48h. The entry-price finish and the highest catalog velocity globally. The nickel mid-coat is what separates a 24h pass from a 48h pass — we don't remove it for cost reduction.

Salt Spray Rating 24h min / 48h typical
Price Tier Entry
Process Electroplated

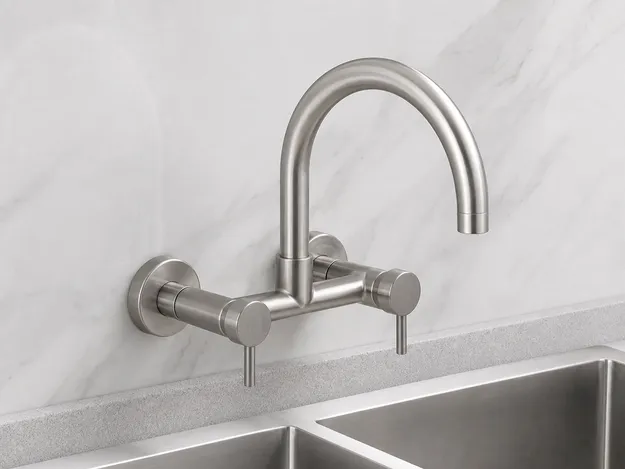

Brushed nickel PVD finish wall mount kitchen faucet

Brushed Nickel

PVD · 0.3–0.5μm Coating

The dominant finish in North American kitchen hardware retail. Fingerprint-resistant surface reduces visible wear in high-use installations, which matters for your buyers in hospitality and commercial applications where the faucet gets heavy daily use. Higher unit cost than chrome, but commands a retail price premium that protects your margin.

Coating Thickness 0.3–0.5μm
Price Tier Mid
Process PVD

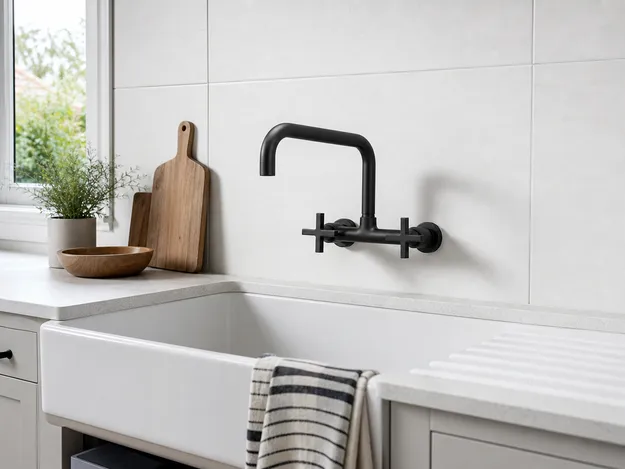

Matte black PVD finish wall mount kitchen faucet

Matte Black

PVD · 48h Salt Spray Rated

The fastest-growing finish in the contemporary kitchen segment. Specified heavily in the farmhouse kitchen aesthetic — matte black wall mount faucets alongside apron-front sinks is a combination that's driving significant SKU requests from our e-commerce OEM buyers.

Salt Spray Rating 48h
Price Tier Mid
Process PVD

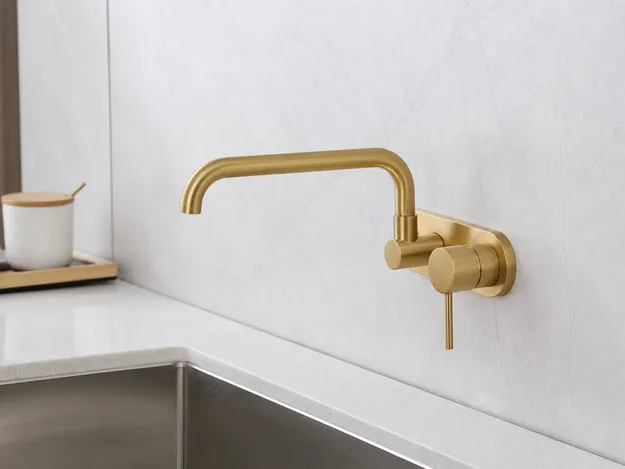

PVD brushed gold finish wall mount kitchen faucet for hospitality

PVD Gold / Brushed Gold

PVD · 0.3–0.5μm Coating

The premium finish tier for hospitality and luxury residential specifications. PVD gold holds color consistency better than electroplated gold over time — no color shift from cleaning chemicals, which matters for hotel properties that use commercial cleaning products. Specified heavily in Middle Eastern and Southeast Asian hospitality projects.

Coating Thickness 0.3–0.5μm
Price Tier Premium
Process PVD

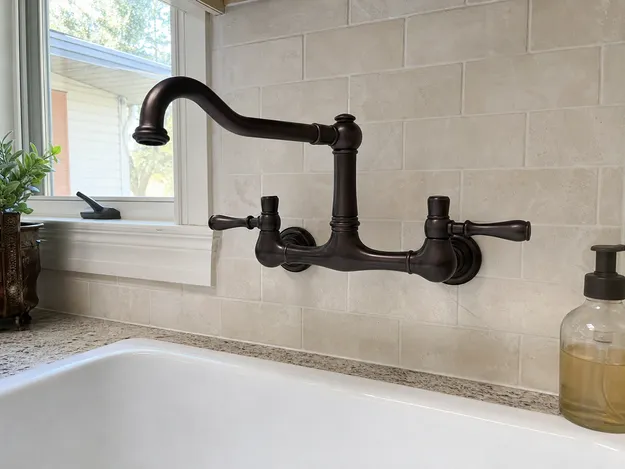

Oil-rubbed bronze finish wall mount kitchen faucet for farmhouse style

Oil-Rubbed Bronze

Electroplated · Living Finish

Specified for traditional and transitional kitchen styles. Popular in North American markets with a strong farmhouse and craftsman aesthetic segment — pairs naturally with the farmhouse sink installations that drive wall mount volume.

Finish Character Living finish
Price Tier Mid
Process Electroplated

In-House Finishing — One Batch, One Team

All five finishes run on our own lines. No subcontracting. For wall mount orders, escutcheon plates and supply tube covers are finished in the same batch as the faucet body — color consistency is controlled end-to-end, not coordinated across vendors.

Applies to all mixed-SKU orders

Finish Process Salt Spray Price Tier Primary Market
Chrome Electroplated (Cu/Ni/Cr) 24h min / 48h typical Entry Global — highest catalog velocity
Brushed Nickel PVD · 0.3–0.5μm — Mid North America — dominant retail finish
Matte Black PVD 48h Mid Contemporary / farmhouse kitchen segment
PVD Gold / Brushed Gold PVD · 0.3–0.5μm — Premium Hospitality — Middle East, SE Asia
Oil-Rubbed Bronze Electroplated · Living finish — Mid North America — farmhouse / craftsman

Specification Guidance

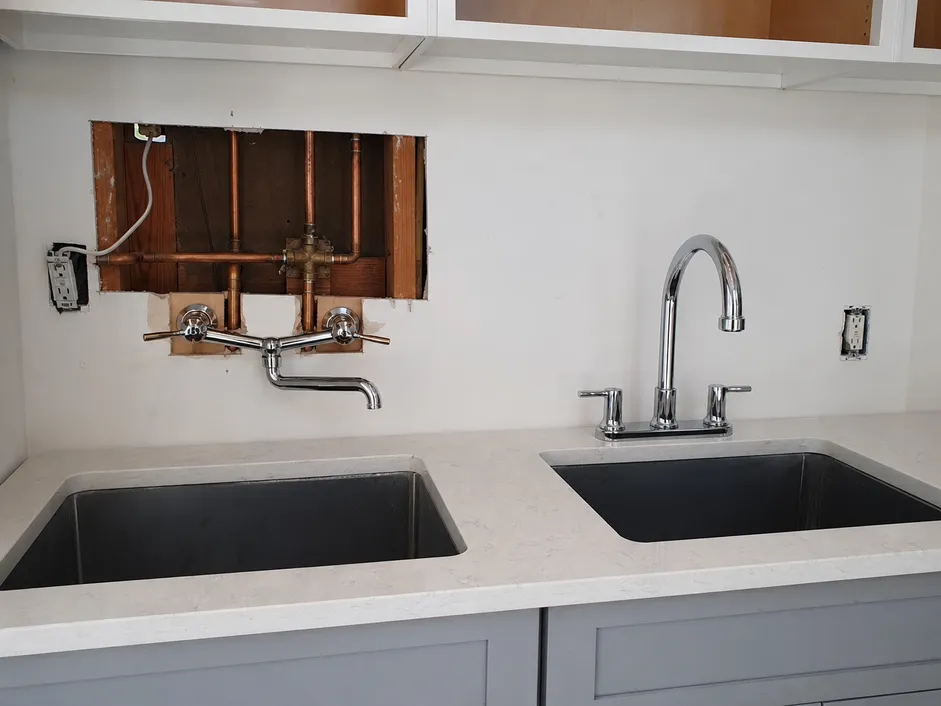

Wall Mount vs. Deck Mount: Helping Your Buyers Choose

The question comes up in every distribution catalog review: when does a buyer specify wall mount over deck mount? The answer is installation-condition driven, not preference driven.

Wall mount vs deck mount kitchen faucet installation comparison

When Wall Mount Is the Right Call

Wall mount requires accessible wall plumbing — supply lines need to be roughed in through the wall before installation. This is standard in new construction and most renovation projects where the wall is being opened anyway, but it's a constraint in retrofit situations where the wall is finished and the plumbing is not accessible.

Your buyers who supply renovation contractors understand this; it's worth including in any product documentation you provide downstream.

Installation Condition Wall Mount Deck Mount
Farmhouse / apron-front sink Required Not applicable
Countertop with no pre-drilled holes Preferred Requires drilling or new countertop
Commercial kitchen / food service Common Standard for most configurations
Renovation with existing countertop Viable if wall plumbing accessible Easier
New construction Specified by architect/designer Default
Hospitality / hotel kitchen Common Standard for budget properties

Catalog Strategy: Complementary, Not Competitive

For buyers building a kitchen faucet catalog, wall mount and deck mount are complementary, not competitive. Stock both and you cover the full range of installation conditions your buyers encounter.

If you're currently carrying only deck mount, adding wall mount in two or three finishes is a low-risk catalog extension — the MOQ of 200 pieces per SKU makes it viable to test before committing to volume.

View Deck Mount Kitchen Faucets

Installation Constraint to Communicate Downstream

Wall Mount Requires Accessible Wall Plumbing

Supply lines need to be roughed in through the wall before installation. Standard in new construction and renovation projects where the wall is being opened. A constraint in retrofit situations where the wall is finished and plumbing is not accessible. Include this in any product documentation you provide to your downstream buyers.

MOQ to Test

200 pcs

Per SKU — viable for catalog extension

Finishes to Start

2–3

Chrome, Brushed Nickel, Matte Black

Market Access

Compliance & Certifications for Wall Mount Kitchen Faucets

Certification requirements vary by destination market. Getting this wrong at the sourcing stage means rework, delays, or blocked shipments. Here's what to specify before production starts.

North America

  • NSF/ANSI 61 + NSF 372

    Lead-free compliance — mandatory for US/Canada potable water contact. Specify at RFQ stage.

  • ASME A112.18.1 / CSA B125.1

    Performance standard for faucets. Required by most US/Canadian plumbing codes.

  • California Prop 65

    If selling into California. Requires warning labels or compliant materials. Confirm with your factory.

  • WaterSense (EPA)

    Optional but increasingly required by retail buyers. Max 1.8 GPM at 60 psi.

Europe

  • CE Marking

    Required for EU market access. Covers construction products directive compliance.

  • EN 817 / EN 200

    European performance standards for mechanical mixing valves and single-lever faucets.

  • WRAS (UK)

    Water Regulations Advisory Scheme — required for UK market post-Brexit. Separate from CE.

  • REACH / RoHS

    Hazardous substance restrictions. Applies to finishes and internal components.

Australia / Middle East

  • WELS (Australia)

    Water Efficiency Labelling and Standards — mandatory for AU/NZ. Star rating system for flow rate.

  • AS/NZS 3718

    Australian/New Zealand performance standard for water supply fittings.

  • SASO (Saudi Arabia)

    Saudi Standards, Metrology and Quality Organization. Required for GCC market entry.

  • Dubai Municipality

    Local approval required for UAE projects. Confirm with your freight forwarder or local agent.

Timing

Specify at RFQ

Certification requirements affect material selection, tooling, and testing. Raising them after production starts means rework costs and delays.

Documentation

Request Test Reports

Ask for third-party lab test reports, not just factory declarations. NSF, SGS, Intertek, and Bureau Veritas are accepted by most buyers.

Lead-Free

Brass Alloy Matters

NSF 372 lead-free compliance requires <0.25% weighted average lead content. Specify C69300 (eco-brass) or equivalent alloy in your PO.

Multi-Market

Bundle Certifications

If you sell into multiple markets, bundle certification testing in one production run. Incremental cost is low; doing it separately later is expensive.

Buyer's Reference

Wall Mount Kitchen Faucet Sourcing Checklist

Use this before issuing an RFQ. The items that get skipped at this stage are the ones that cause problems at inspection or on arrival.

1 Body & Valve Specification

  • Specify brass body — C36000 minimum, C69300 (eco-brass) for lead-free markets

  • Ceramic disc cartridge — specify 500,000-cycle rating minimum for mid/premium tier

  • Confirm spout reach and height dimensions match your target sink configuration

  • Specify center-set distance (typically 8" for wall mount) — confirm with factory drawing

  • Request 2D/3D drawings before tooling approval — check all critical dimensions

2 Finish & Surface Treatment

  • Specify PVD for mid/premium finishes — confirm coating thickness (0.3–0.5μm minimum)

  • Request CASS (salt spray) test results — 200h minimum for chrome, 500h for PVD

  • Approve physical finish samples before production — color and texture vary by factory

  • Confirm finish consistency across handles, spout, and escutcheon plates in same batch

3 Flow Rate & Water Efficiency

  • Specify flow rate by market: 1.8 GPM (US WaterSense), 2.2 GPM (standard US), 8–9 L/min (EU)

  • Confirm aerator thread size matches destination market standard (M22, M24, or 15/16")

  • Request flow test report at rated pressure — factory-stated GPM is often measured at non-standard pressure

4 Certifications & Compliance

  • Confirm required certifications by destination market before issuing RFQ (see section above)

  • Request third-party lab test reports — NSF, SGS, Intertek, or Bureau Veritas accepted

  • Verify report covers the exact model/SKU being ordered — not a similar model

  • Check report expiry date — NSF certifications require annual renewal

5 Packaging & Labeling

  • Specify inner box dimensions and master carton configuration — affects container utilization

  • Confirm all hardware, supply lines, and installation template are included in box

  • Specify installation instruction language requirements by market

  • Confirm barcode format (UPC, EAN-13) and placement on retail packaging

6 QC & Inspection

  • Schedule pre-shipment inspection (PSI) — 100% hydrostatic pressure test at factory minimum

  • Use AQL 2.5 sampling for finish and cosmetic inspection — define defect classification in advance

  • Require third-party inspection (SGS, Intertek, QIMA) for first orders and any new factory

  • Confirm golden sample is retained at factory and matches approved pre-production sample

Common Mistakes When Sourcing Wall Mount Faucets

These are the errors that consistently cause delays, returns, and margin erosion — and how to avoid them.

Not confirming rough-in dimensions before production

Wall mount faucets require precise in-wall supply line placement. If the rough-in spacing doesn't match the faucet's inlet centers, the product is unusable without costly rework. Always confirm inlet center distance and wall projection depth from factory drawings before approving tooling.

Assuming certifications transfer across SKUs

A factory may hold NSF 61 certification for one model but not the variant you're ordering. Always verify the test report references the exact model number, finish, and configuration. A matte black finish on the same body may require a separate certification if the coating chemistry differs.

Skipping physical finish approval

Finish names like "brushed nickel" or "matte black" are not standardized across factories. Two suppliers can produce dramatically different results under the same label. Always request and approve a physical sample before production — digital photos are not sufficient for finish sign-off.

Ordering without a pre-shipment inspection

Wall mount faucets have more complex assembly than deck-mount models — more components, more potential leak points. Skipping PSI to save cost is a false economy. A single container of defective product will cost far more than the inspection fee. Budget for third-party PSI on every order until the supplier has a proven track record.

Ignoring spout reach relative to basin depth

A wall mount faucet with insufficient spout reach will discharge water onto the basin rim rather than into the drain. Confirm spout reach against your target vessel or undermount basin dimensions. This is especially critical for vessel sinks, which sit higher and require longer spout projection.

Custom Manufacturing

OEM and Custom Configuration for Wall Mount

The wall mount configuration has more OEM variation requests than most of our kitchen faucet line, because the installation requirements vary more across markets and project types. Below are the most common customization requests we handle.

Center Distance Between Supply Connections

Standard is 150mm (6"), matching North American rough-in convention. European projects often specify 180mm. Australian projects vary.

OEM Range

120mm – 200mm

No new tooling required for most configurations — the casting die accommodates the variation.

Spout Height and Reach

Standard spout height from wall is 200–280mm. Commercial kitchen applications with deeper sinks often request 300–350mm to clear the sink rim.

Spout Height

200–280mm standard · 300–350mm commercial

Spout Reach

180–230mm residential · 250–280mm commercial

Both dimensions adjustable within existing tooling range.

Handle Configuration

Single-handle is standard. Two-handle (separate hot and cold) is the more common specification in European markets and in hospitality projects where the traditional aesthetic is preferred.

Key Detail

Two-handle wall mount uses the same body casting with a different valve block — both configurations can be produced from the same OEM order if you need both.

Escutcheon Plate Profile

Round, square, and rectangular escutcheon profiles are available. The escutcheon is a separate casting from the body, so profile changes don't require new body tooling.

Custom Profile Option

For buyers who want a custom escutcheon profile to match a specific design language, we can produce a new casting die for the escutcheon at a fraction of the cost of a full body tooling project.

Finish Matching

If you're supplying a project where the wall mount kitchen faucet needs to match other fixtures — bathroom faucets, shower hardware — in a specific finish, we can match finish parameters across product lines.

How It Works

We hold documented plating bath chemistry and PVD process parameters for each finish, so cross-product color consistency is achievable.

Minimum Order Quantity

OEM Wall Mount MOQ

200 pieces per SKU — starting MOQ for OEM wall mount kitchen faucets

New body casting die — tooling investment discussed separately; most buyers amortize over the first two production runs

Within existing tooling (center distance, spout height, handle config, escutcheon profile) — 200 pieces workable with no tooling cost

Discuss OEM Requirements
OEM custom wall mount kitchen faucet configurations showing different handle and escutcheon options

OEM Summary

What You Can Configure Without New Tooling

Center distance 120–200mm (any increment)
Spout height 200–350mm
Spout reach 180–280mm
Single-handle or two-handle (same body casting)
Round, square, or rectangular escutcheon profile
Finish matching across product lines (documented PVD / plating parameters)

Certification & Compliance

Compliance Documentation by Destination Market

Wall mount kitchen faucets ship to the same certification requirements as the rest of our kitchen line. We hold the documentation for the three major export markets.

Market Required Certification Our Status
United States / Canada cUPC (IAPMO) — ASME A112.18.1 / CSA B125.1 Certified — test reports available
European Union CE (EN 817 / EN 200) Certified — declaration of conformity available
Australia / New Zealand WaterMark (AS/NZS 3718) Certified — license documentation available
Global (third-party audit) SGS Audited — reports available on request
All markets ISO 9001:2015 Certified

North American Lead-Free Compliance

cUPC / NSF 61/372 / AB 1953

Our cUPC-certified wall mount faucets use low-lead brass alloy meeting NSF 61/372 requirements — ≤0.25% weighted average lead content.

Every incoming brass batch is XRF-tested before production. This is a non-negotiable step in our cUPC compliance process, not a spot-check.

For buyers supplying California, the AB 1953 lead-free requirement is covered by our alloy qualification. No separate documentation is needed.

Multi-Market Consolidation Advantage

North America · EU · Australia from one factory

For buyers consolidating North American, European, and Australian orders from a single factory, the multi-certification coverage means your compliance team isn't managing documentation from three different suppliers.

Test reports and certification documentation ship with every container — not on request after the fact.

Learn more about our manufacturing capabilities and quality system

United States & Canada

cUPC Certified

ASME A112.18.1 / CSA B125.1 · IAPMO

European Union

CE Certified

EN 817 / EN 200 · Declaration of conformity

Australia / New Zealand

WaterMark Certified

AS/NZS 3718 · License documentation

Quality System

ISO 9001:2015

SGS audited · Reports on request

Logistics & Fulfillment

Packaging and Container Loading

Retail-ready cartons, container-optimized dimensions, and e-commerce configurations — everything your freight forwarder and warehouse team needs before order confirmation.

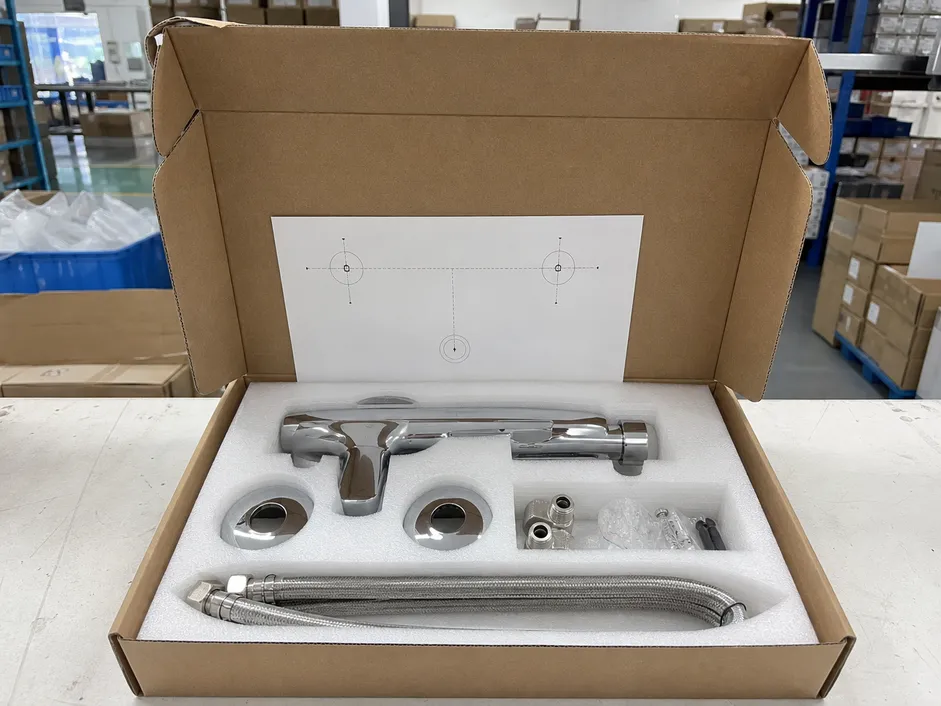

Wall mount kitchen faucet retail-ready carton packaging with foam insert protection and installation template

Standard Carton Contents

  • Faucet body
  • Escutcheon plate(s)
  • Supply tube assembly
  • Mounting hardware
  • Installation template — paper guide marking wall drilling positions for supply connections, reducing installation errors and buyer callbacks

Transit Protection

Each unit ships in an individual retail-ready carton with foam insert protection for the spout and escutcheon plate — the components most vulnerable to transit damage. The foam geometry is configured per SKU to prevent movement under compression during ocean freight.

40HQ Container Loading

Standard carton dimensions are calculated for 40HQ container optimization. Typical load capacity per 40HQ:

1,800

Units minimum

2,200

Units maximum

Actual capacity varies by configuration and carton size. A packing list with CBM and gross weight per SKU is provided before order confirmation so your freight forwarder can quote accurately.

Pre-Order Packing List

We provide a full packing list with CBM and gross weight per SKU before order confirmation. Your freight forwarder gets accurate data to quote before you commit — no surprises at the port.

E-Commerce and OEM Packaging Options

For e-commerce buyers, we configure packaging for direct-to-consumer shipment. For OEM orders, white-label packaging with your brand identity is available.

E-Commerce Configuration

  • Reinforced outer carton for direct-to-consumer shipment
  • Poly-bag inner protection
  • Barcode and label placement compatible with FBA and third-party warehouse receiving requirements

OEM White-Label Packaging

  • Your brand name printed on carton
  • Product photography on packaging
  • Available on OEM orders — minimum order quantities apply
FAQ

Frequently Asked Questions

Technical and specification questions from distributors, contractors, and OEM buyers — answered with the detail needed to make the right call before ordering.

What rough-in depth does a wall mount kitchen faucet require, and how do you handle variation in wall thickness?

Standard rough-in for wall mount kitchen faucets positions the supply connections 100–120mm behind the finished wall surface. Our adjustable rough-in assembly accommodates ±15mm of variation from the standard position — covering the range from standard drywall to tile-over-drywall to most stone tile installations.

For projects with unusually thick wall assemblies (heavy stone tile, double-layer tile, or specialty wall finishes), we can extend the adjustment range on OEM orders. The installation template included with each unit marks the correct drilling positions for the supply connections based on the standard rough-in depth.

Standard Rough-In

100–120mm

Behind finished wall surface

Adjustment Range

±15mm

Standard to tile-over-drywall

OEM Option

Extended Range

Heavy stone & specialty finishes

What is the standard center distance between supply connections, and can it be customized?

Standard center distance is 150mm (6"), which matches North American rough-in convention. European projects commonly specify 180mm; Australian projects vary. We produce custom center distances from 120mm to 200mm on OEM orders without new body tooling for most configurations.

If you're supplying a market with a non-standard rough-in convention, confirm the local standard before ordering — it's easier to specify the correct center distance at the order stage than to adapt in the field.

Market Common Center Distance Notes
North America 150mm (6") Standard production default
Europe 180mm Common specification; OEM available
Australia Varies Confirm local standard before ordering

Custom range: 120mm–200mm available on OEM orders. No new body tooling required for most configurations.

Wall mount kitchen faucet vs. deck mount: which is better for a renovation project?

Neither is universally better — the correct choice depends on the installation condition. For renovation contractors, wall mount requires accessible wall plumbing: supply lines need to be roughed in through the wall. If the wall is finished and the plumbing is not accessible, deck mount is the lower-cost installation path.

Specify Wall Mount When

  • Countertop has no pre-drilled holes and buyer doesn't want to drill
  • Farmhouse or apron-front sink is specified (no deck available)
  • Clean countertop surface is a design requirement
  • Wall plumbing is accessible and can be roughed in

Specify Deck Mount When

  • Countertop already has pre-drilled holes
  • Wall plumbing access is limited or not accessible
  • Wall is finished and supply lines cannot be rerouted
  • Lower-cost installation path is the priority

For renovation contractors: The key constraint is wall plumbing access. Wall mount is the right answer when the wall can be opened and supply lines roughed in. If the renovation scope doesn't include wall work, deck mount avoids the additional labor cost. See our deck mount kitchen faucet page for a full specification comparison.

What certifications does your wall mount kitchen faucet hold for the North American market?

Our wall mount kitchen faucets are cUPC certified (IAPMO), verifying compliance with ASME A112.18.1 / CSA B125.1 plumbing standards. The brass alloy meets NSF 61/372 lead content requirements (≤0.25% weighted average lead content), covering the California AB 1953 lead-free requirement.

Plumbing Standard

cUPC (IAPMO)

ASME A112.18.1 / CSA B125.1

Lead Content

NSF 61/372

≤0.25% weighted average — CA AB 1953 compliant

Documentation

Included with Shipment

Test reports & certification package

Test reports and certification documentation are available with shipment. For buyers importing into specific US states with additional requirements, we can provide the relevant documentation package — contact us with your destination state and we'll confirm what's needed.

What is the MOQ for OEM wall mount kitchen faucets with a custom center distance or spout height?

MOQ starts at 200 pieces per SKU for modifications within existing tooling. Center distance adjustment, spout height variation, handle configuration change, and escutcheon profile selection all fall within this category.

Within Existing Tooling

  • Center distance adjustment
  • Spout height variation
  • Handle configuration change
  • Escutcheon profile selection
200 pcs MOQ per SKU

Lead time: 25–35 days

New Body Tooling Required

Modifications requiring a new casting die for a significantly different body geometry are discussed separately. Tooling investment is quoted independently from the per-unit price.

Most buyers amortize tooling cost over the first two production runs.

Lead time: 35–50 days

How do you ensure the escutcheon plate finish matches the faucet body across a large project order?

All components — faucet body, escutcheon plate, supply tube covers — are finished in the same batch on the same line. We don't finish components separately and assemble them later, because batch-to-batch color variation in plating and PVD processes is real and visible when components are placed side by side.

Batch Finishing Protocol

Finishing everything together in one batch eliminates color variation. For project orders where the wall mount faucet needs to match other fixtures — bathroom faucets, shower hardware — we hold documented process parameters for each finish and can match across product lines.

Contact us with the reference finish and we'll confirm the match before production.

Request a Quote

Get a Quote for Wall Mount Kitchen Faucets

Most new buyers start with a sample order — 2–4 units across the finishes and configurations they're evaluating — before committing to a production run. We ship samples from catalog inventory within 7–10 business days.

If you have a specific project requirement — a non-standard center distance, a custom spout height, a finish that needs to match existing hardware — send us the details and our engineering team will confirm feasibility and lead time before you commit to an order.

For buyers building a new catalog or entering a new market, tell us your target channel and volume expectations and we'll suggest a starter configuration mix based on what's moving for our existing distributors in that region.

Get a Quote View All Kitchen Faucets

Contact Information

Sample Orders Available

2–4 units shipped from catalog inventory within 7–10 business days. Evaluate finishes and configurations before committing to a production run.

© 2026 Wfaucet. All rights reserved.
